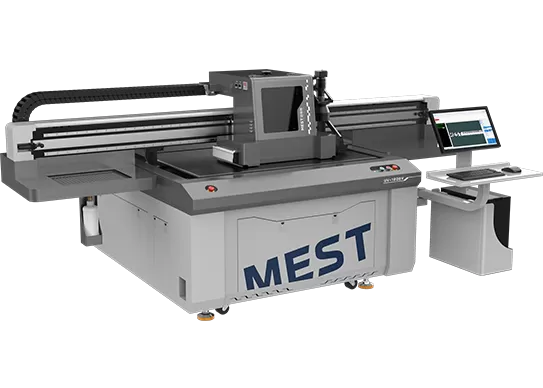

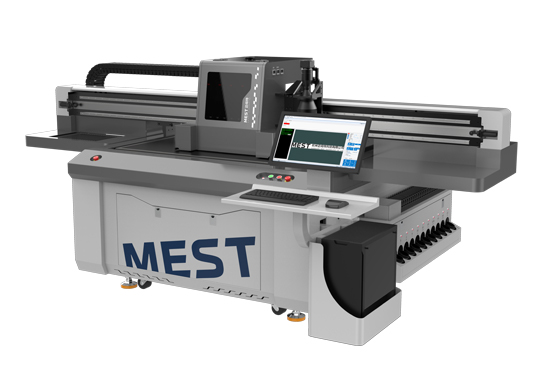

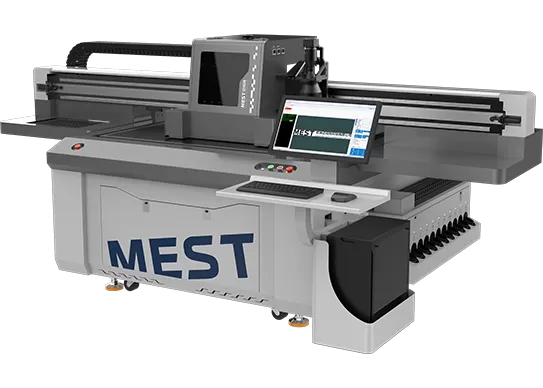

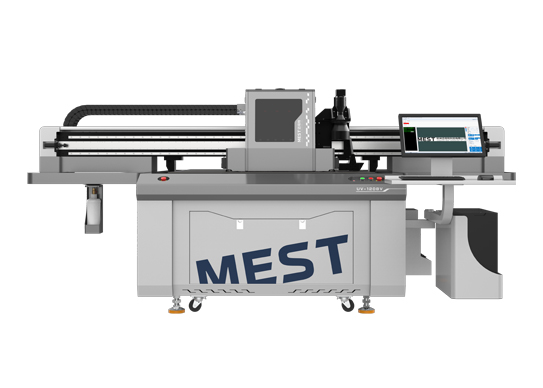

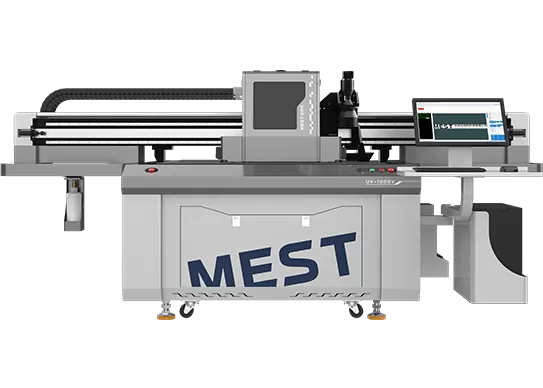

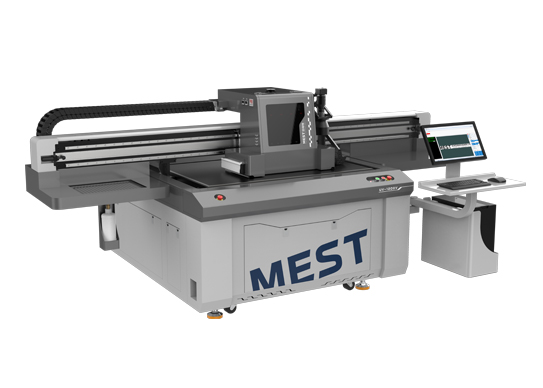

The MEST-1208V is a compact UV flatbed printer with a 1200×800mm print area, designed for efficient production of small-to-medium-sized items. Equipped with Ricoh G6 / Ricoh G5i / Epson i3200-U1 printheads. Supporting a variety of rigid materials like PVC, acrylic, and wood, it delivers excellent color accuracy and fine detail. With a stable build and user-friendly interface, the MEST-1208V is ideal for gift customization, signage, and short-run manufacturing—making it a cost-effective UV printing solution.
| Printer Size | 3110mm*1810mm*1520mm |
| Weight of Equipment | 1200KG (Industrial marble platform) |
| Camera Scan Range | Line scan: 1200*800mm |
| Camera Lifting | Line scan: 0-70mm |
| Recognition System | Carriage-Mounted Line Scan Vision System |
| Print Head | Epson i3200-U1/Ricoh G5i/Ricoh G6 (optional) |
| Effective Printing Size | 1200*800mm |
| Accepted Printed Product Height | 0-70mm (customizable) |
| Print Colors | CMYK+LC LM+LK LLK+W+V+coating (supports multiple color combinations) |
| Number of Print Heads | 1-9 (customizable) |
| Printing speed | 5-12㎡/h |
| Print Resolution | 1200DPI |
| Lifting function | The nozzle carriage is electronically raised and lowered automatically |
| Data Interface | 3.0 USB Transmission interface |
| Operating System | Microsoft windows 10 Professional editior |
| Ink system | Continuous ink supply/capacity 1500ml/secondary constant temperature and pressure ink supply / cyclic stirring of white ink |
| Operating Environment | Temperature: 20℃-30℃/Humidity: 40-70% |
| Accepted File Format | TIFF/BMP/PDF/EPS/JPEG, etc. |
