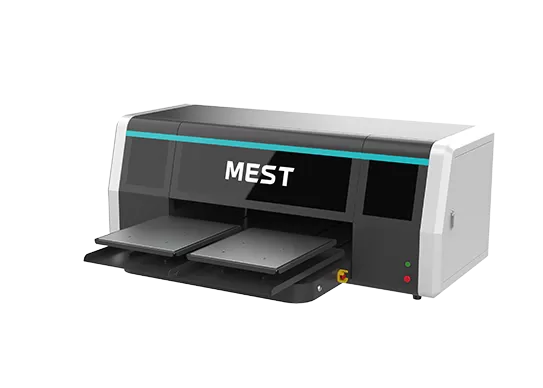

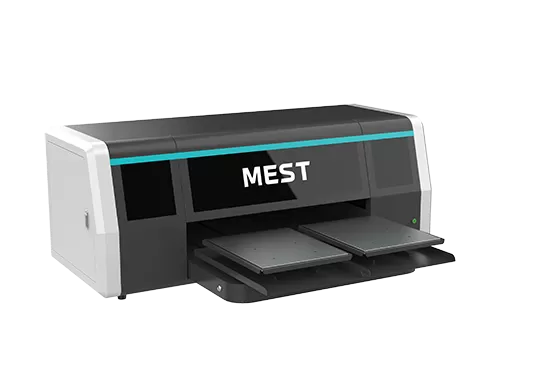

The DTG-4050II DTG printer supports dual-station printing, automatic platform lifting, and a white ink circulation system, ensuring efficient and stable print quality with lower operating costs.
Machine Model | DTG-4050II |
Dimensions (L×W×H) | 1990 × 1300 × 800 mm |
Packaging Dimensions | 2250 × 1650 × 1020 mm |
Packaging Weight | 700 kg |
Print Head | Epon i3200 x 4 units |
Print Cycle Tume | 165sec / pass （dark fabric) 150sec / pass （light fabric) |
Printing Size | 990 × 550 mm |
Applicable Materials | 100% cotton or light-colored fabric with < 5% PU coating |
Printing Resolution | 720 × 2400 dpi |
Ink Type | Pigment ink |
Colors | CMYK, ORGB, White, White |
Ink Supply System | Color ink siphon * White ink circulation |
Print Interface | Gigabit Ethernet port |
Power | 110 / 220V ( ± 5%), 50 / 60Hz, 10A |
Starup Environment | Temperature: 15-32°C, RH: 35-80%. It is recommended to keep the machine on standby for 24 hours. |
Shutdown Environment | Temperature: 5-35°C, RH: 20-80% (no condensation). Manual cleaning is required if powered off for more than 3 days. |
