Compact MEST-1208V UV Flatbed Printer

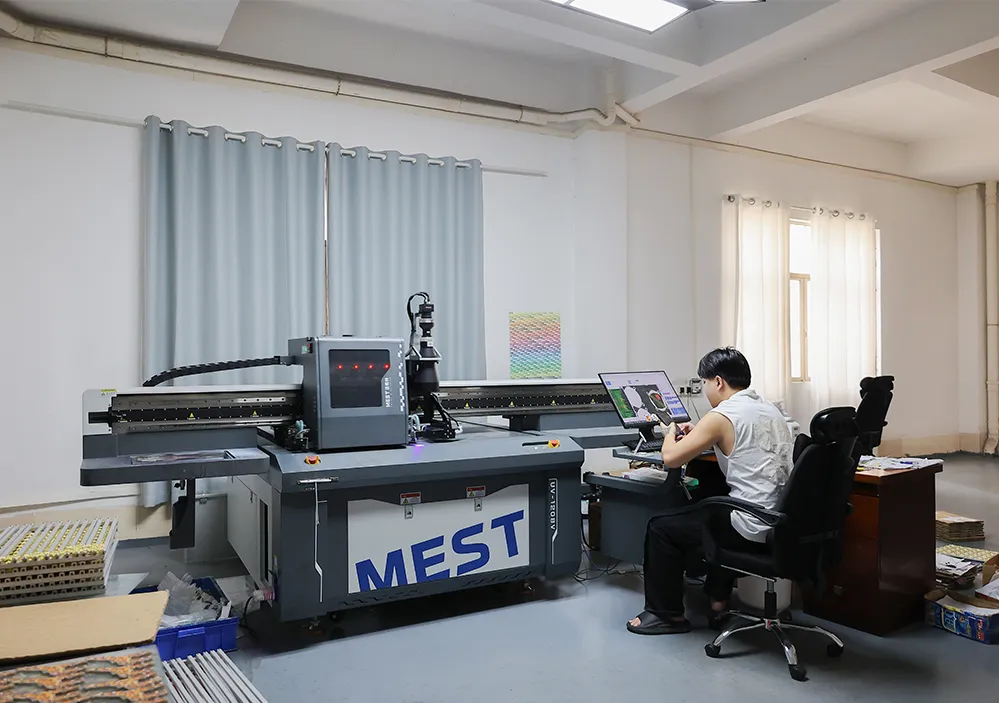

The MEST-1208V's 1200×800mm bed is sized for small-to-medium items — gift pieces, nameplates, small acrylic parts, and promotional products — letting operators arrange multiple pieces on the platform and print them together in one cycle. Its compact footprint makes it easy to fit into small workshops and short-run production lines without sacrificing batch efficiency.

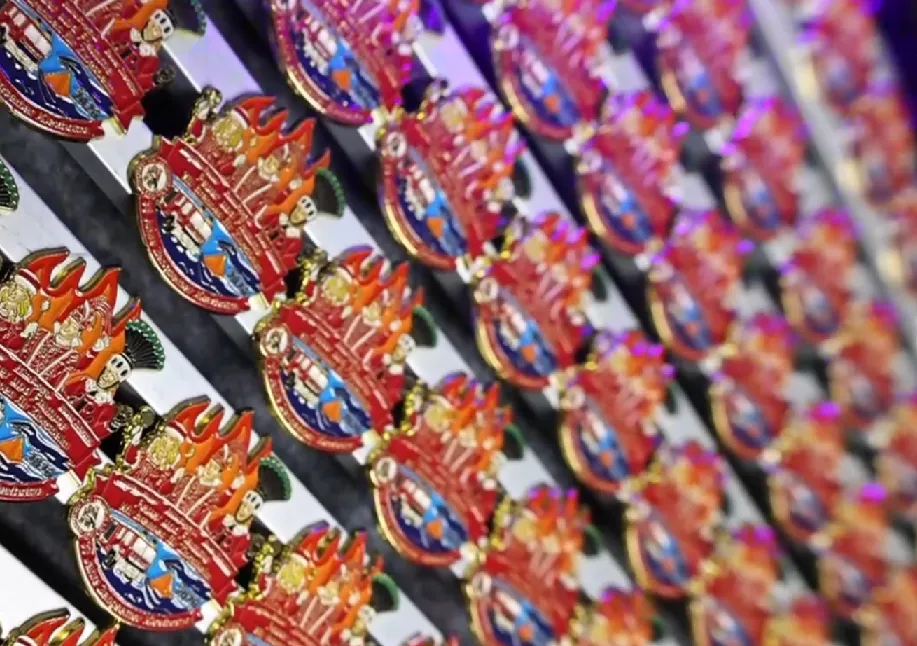

With printing speeds ranging from 5 to 12 m²/h depending on print mode and printhead configuration, the MEST-1208V is built for the steady, predictable output that gift customization and short-run manufacturing businesses rely on. Support for up to 9 customizable printheads lets you adjust the configuration to match order volume without overinvesting in capacity you don't need.

The MEST-1208V is standard-equipped with Ricoh G6 and Ricoh G5S industrial printheads (Epson i3200-U1 also available as an optional configuration). Ricoh G6 delivers ultra-high firing frequency suited to continuous production, while Ricoh G5S is engineered for high-drop, high-precision output — holding sharp detail even on substrates with slight height variance or uneven surfaces. Compared to consumer-grade heads found in entry-level printers, Ricoh's industrial nozzles are built for continuous, high-intensity duty cycles, translating into fewer nozzle failures, more stable color output, and a significantly lower long-term cost per printhead replacement.

Instead of juggling separate scanning, RIP, and print-control software, the MEST-1208V runs on MEST's proprietary 3-in-1 operating system — combining vision scanning, print parameter adjustment, and RIP processing into a single interface. The workflow follows the natural sequence operators already think in: load material, scan, adjust, print. This reduces training time for new staff and eliminates the file-transfer and format-conversion steps common with multi-software setups.

The MEST-1208V is equipped with an industrial-grade marble platform as its printing base. Unlike standard metal beds, marble has extremely low thermal expansion and virtually no warping over time, which keeps the surface perfectly flat even after long hours of continuous operation. This rock-solid flatness reduces vibration during high-speed printhead movement and minimizes micro-level positioning drift, allowing the vision system and printheads to maintain consistent registration accuracy print after print — resulting in sharper detail, more even color, and fewer misprints on long production runs.

The MEST-1208V's print bed is equipped with a built-in vacuum suction system that draws materials firmly flat against the platform during printing. This is especially useful for thin, lightweight, or slightly warped substrates — such as paper-backed materials, thin acrylic sheets, or curled boards — which would otherwise lift, shift, or ripple under the printhead. By holding every item flat and in place throughout the entire print cycle, the vacuum platform maintains a consistent printhead-to-substrate gap across the whole surface, reducing blurring, misregistration, and ink smudging, and keeping print quality consistent from the first piece to the last.
