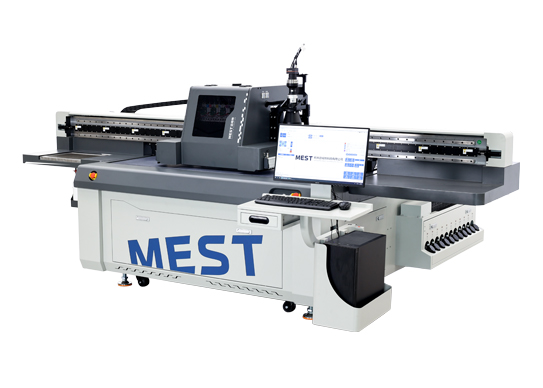

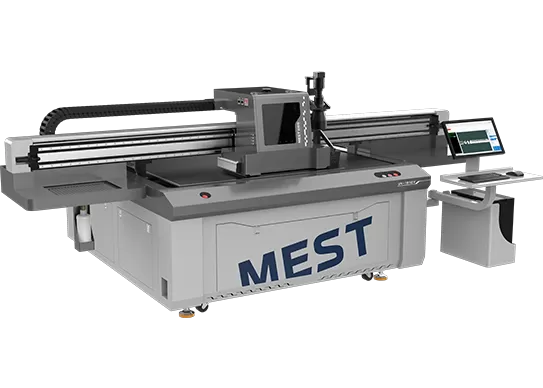

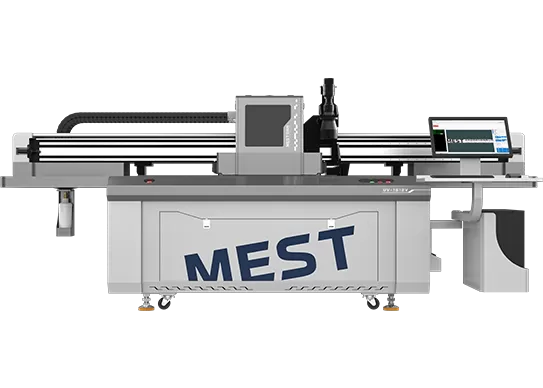

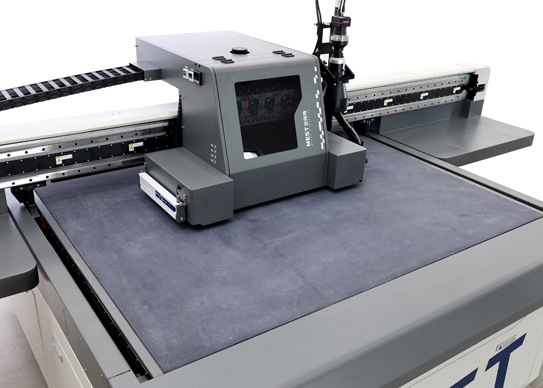

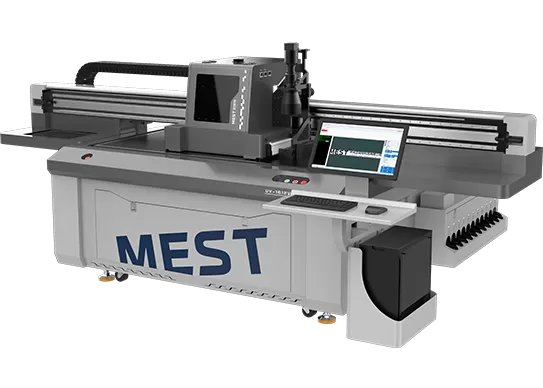

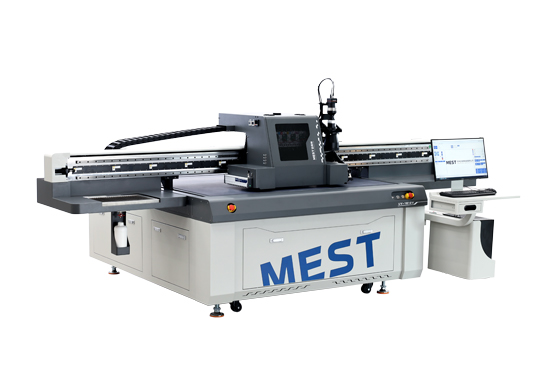

The MEST-1612V is a high-precision, high-efficiency UV flatbed printer built for mass production of rigid materials. With a 1600×1200mm print area and multi-head configuration, it balances output speed and compact footprint. Equipped with Ricoh G6 / Ricoh G5i / Epson i3200-U1 printheads. Ideal for printing fridge magnets, crafts, and signage, the MEST-1612V ensures stable performance, vivid colors, and user-friendly operation—making it a reliable solution for small factories and customized production lines.
Printer Size | 3610mm*2210mm*1520mm |
Weight of Equipment | 1600KG (Industrial marble platform) |
Camera Scan Range | Line scan: 1600*1200mm |
Camera Lifting | Line scan: 0-70mm |
Recognition System | Carriage-Mounted Line Scan Vision System |
Print Head | Ricoh G6/Ricoh G5i/Epson i3200-U1 (optional) |
Effective Printing Size | 1600*1200mm |
Accepted Printed Product Height | 0-70mm (customizable) |
| Print Colors | CMYK+LC LM+LK LLK+W+V+coating (supports multiple color combinations) |
Number of Print Heads | 1-9 (customizable) |
| Printing speed | 6-30㎡/h |
Print Resolution | 1200DPI |
| Lifting function | The nozzle carriage is electronically raised and lowered automatically |
| Data Interface | 3.0 USB Transmission interface |
Operating System | Microsoft windows 10 Professional editior |
| Ink system | Continuous ink supply/capacity 1500ml/secondary constant temperature and pressure ink supply / cyclic stirring of white ink |
Operating Environment | Temperature: 20℃-30℃/Humidity: 40-70% |
Accepted File Format | TIFF/BMP/PDF/EPS/JPEG, etc. |
Our engineers will provide a tailored quote and technical analysis for your production line within 24 hours.
Free Sample Printing & Testing
Factory Direct Pricing & Support
Global Fast Delivery
100% Data Privacy Protected
