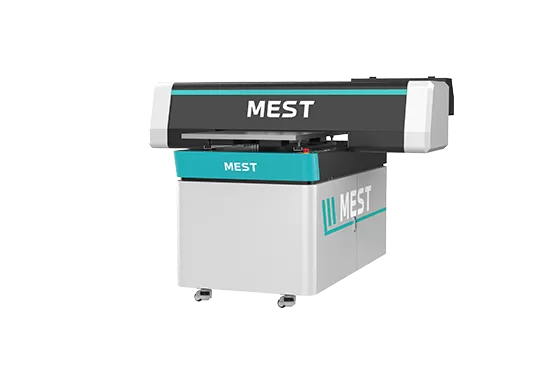

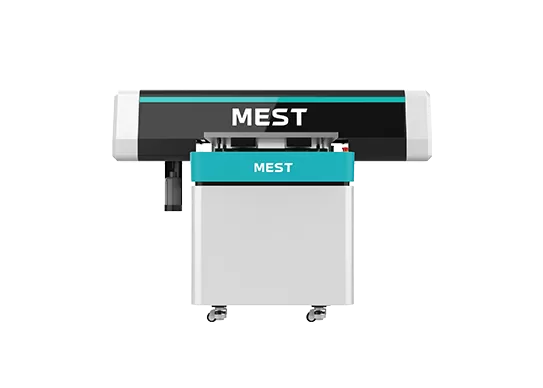

Designed for small and medium production needs, this compact 6090 UV flatbed printer delivers high-quality direct printing on acrylic, wood, glass, metal, leather, plastic, and other rigid materials. With automated height adjustment, precise positioning, and simple setup workflow, it helps businesses produce customized products efficiently with consistent print quality and reduced manual operation.

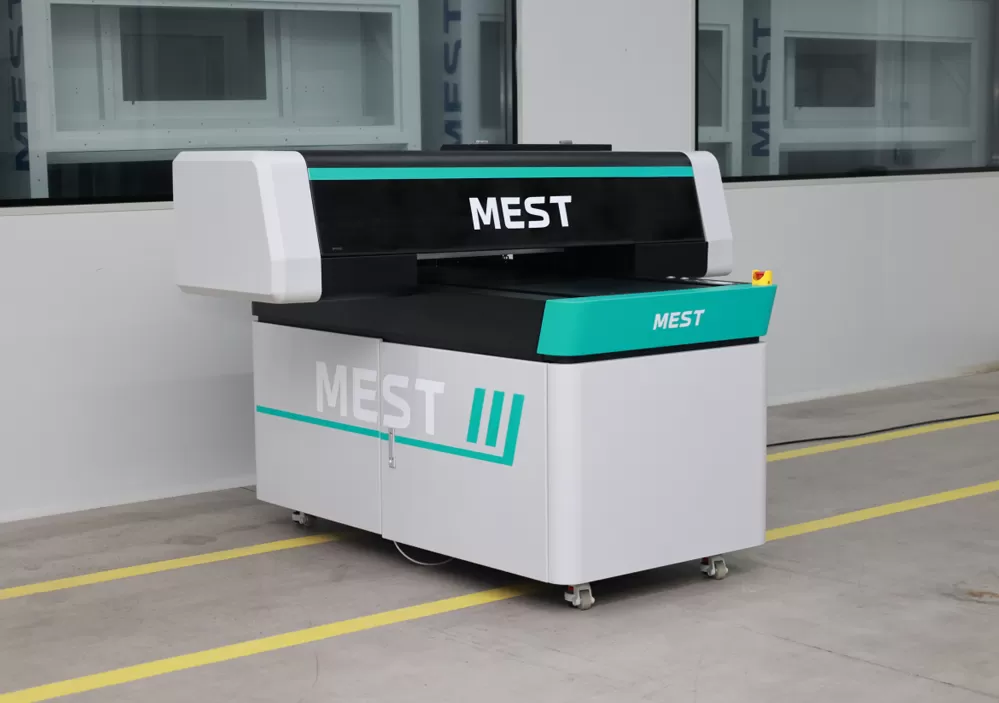

The MEST-6090 features a carriage-mounted line scan vision system with a 600×900mm camera scan range and a scanning speed of 800mm/s. It automatically detects the exact position, angle, and height of each object placed on the bed — outputting images at 1:1 true scale. Whether you're running batches of small items or irregularly shaped products, one-click printing kicks in without manual alignment, reducing operator error and cutting setup time dramatically.
From rigid materials like wood, glass, metal, ceramic, and ABS plastic, to soft surfaces like leather and PU — the MEST-6090 handles them all without plates or pre-treatment in most cases. The 500ml continuous ink supply system with constant temperature and pressure, combined with UV instant curing, ensures strong adhesion and scratch resistance regardless of the substrate. Ideal for gift shops, sign makers, packaging studios, and small-batch customization businesses.

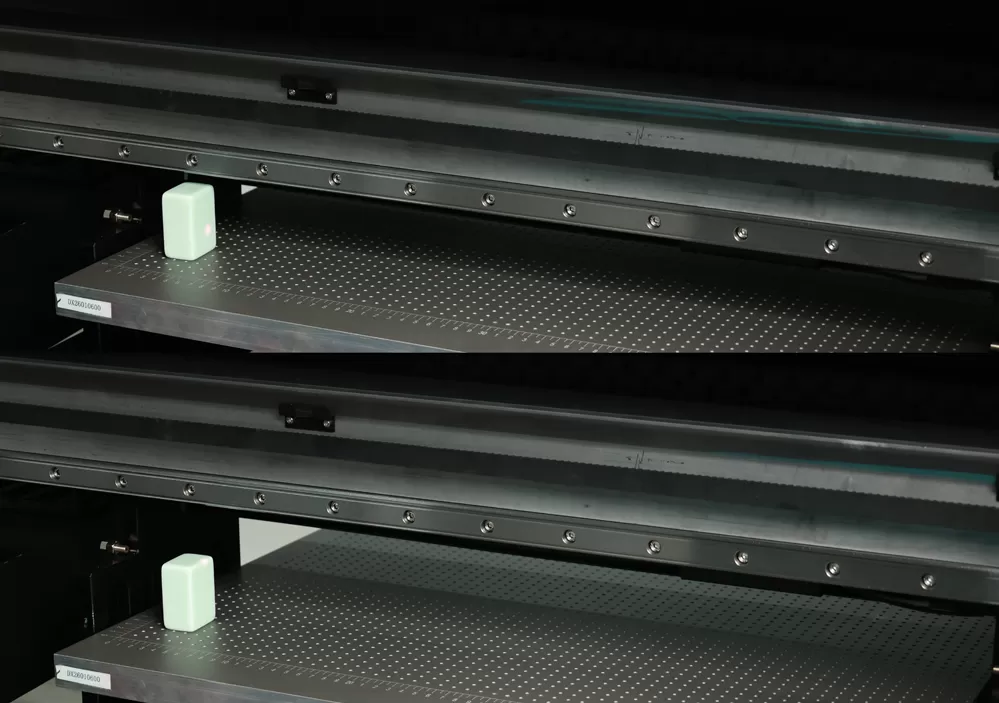

Unlike standard flatbed printers limited to thin substrates, the MEST-6090 accepts products up to 200mm tall with electronically automated Z-axis lifting and lowering. The nozzle carriage adjusts height automatically based on sensor readings, protecting printheads from collision while enabling you to switch between thin cards, gift boxes, acrylic blocks, etc. without manual reconfiguration.
While much of the 6090 market still ships entry-level machines with XP600 printheads (known for a 3–6 month lifespan and slower output) the MEST-6090 comes standard with Epson i1600-U1 or i3200-U1 industrial printheads. Engineered for 12+ months of continuous use with proper maintenance, the i-series delivers sharper gradients, richer color accuracy, and significantly lower long-term replacement cost- a measurable advantage for any production-focused printing business.

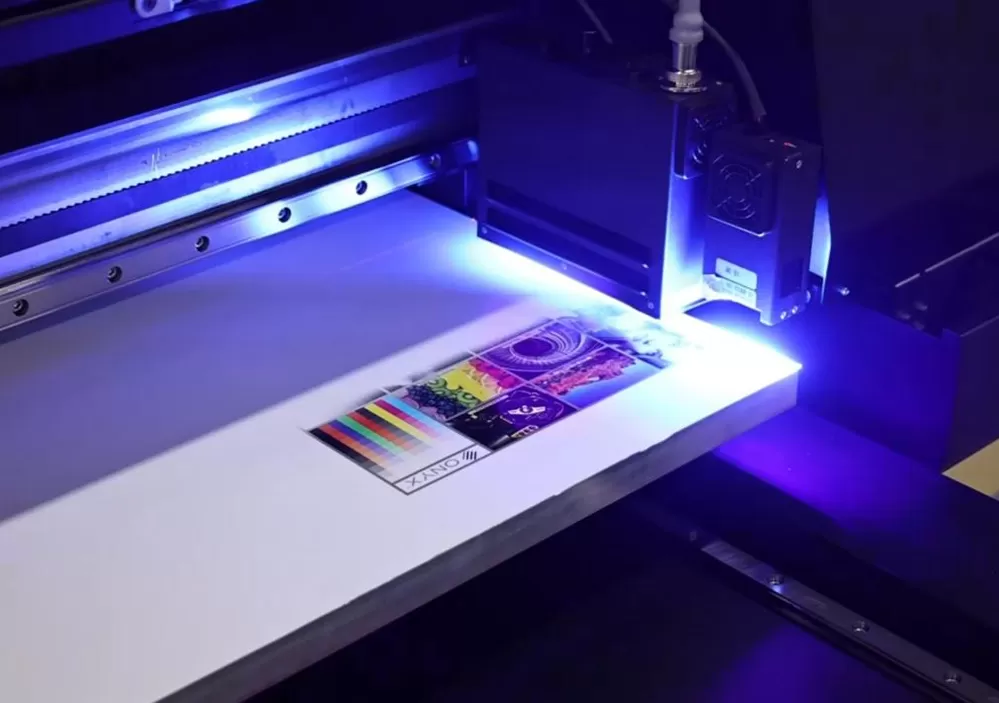

The MEST-6090 delivers a printing speed of 3 m²/h at 1200 DPI resolution, making it ideal for businesses that need to turn around diverse orders quickly. With a 600×900mm effective print area and support for 1 to 4 customizable printheads, you can scale throughput to match order volume without investing in a large-format industrial machine. One operator can manage the full workflow end-to-end.

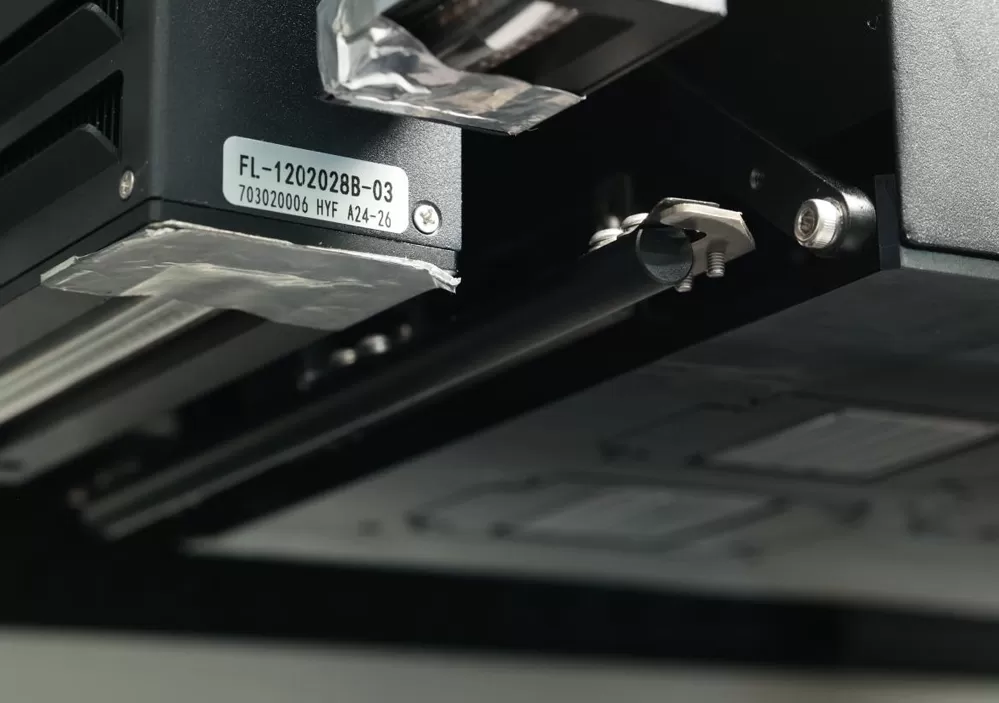

The MEST-6090 is equipped with an electronic anti-collision sensing mechanism on the printhead carriage. If an object exceeds the expected height or shifts during printing, the system triggers an automatic stop before contact occurs — protecting both the Epson i-series printheads and the item being printed. Given that printheads represent the single highest-cost consumable in UV flatbed printing, this protection directly reduces your risk of costly accidental damage.

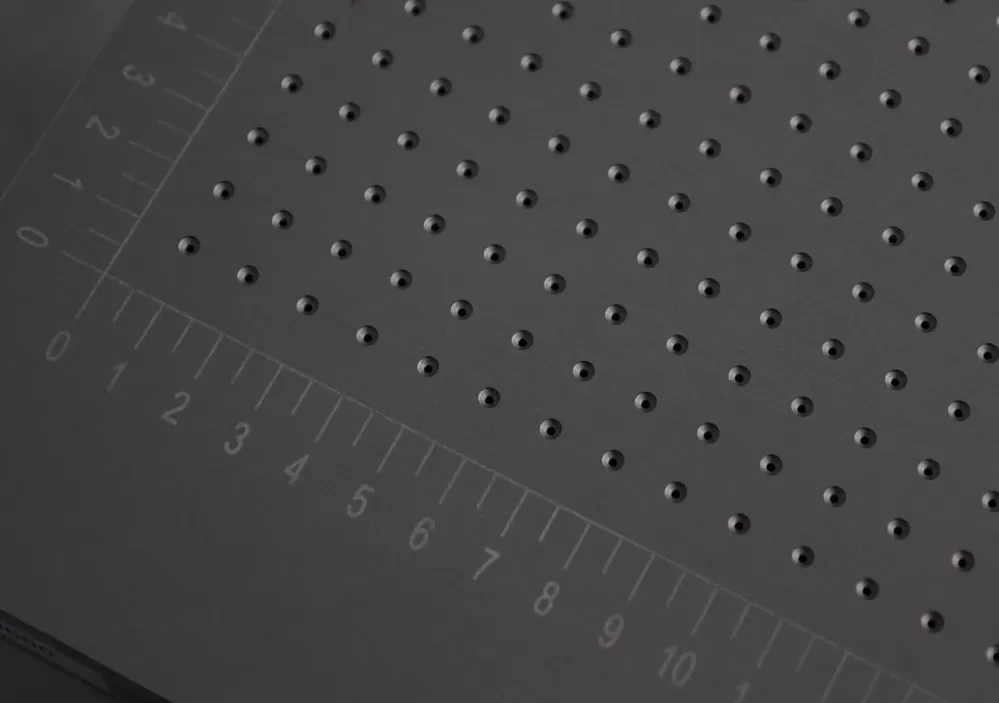

The MEST-6090 features an air suction flatbed platform that securely holds substrates in place throughout the print cycle — no tape or fixtures required for most flat materials. This is especially important when printing soft or lightweight substrates such as leather, PET film, or thin acrylic, where even slight movement can compromise registration accuracy. A stable, consistent hold means reliable output across every piece in a production run.

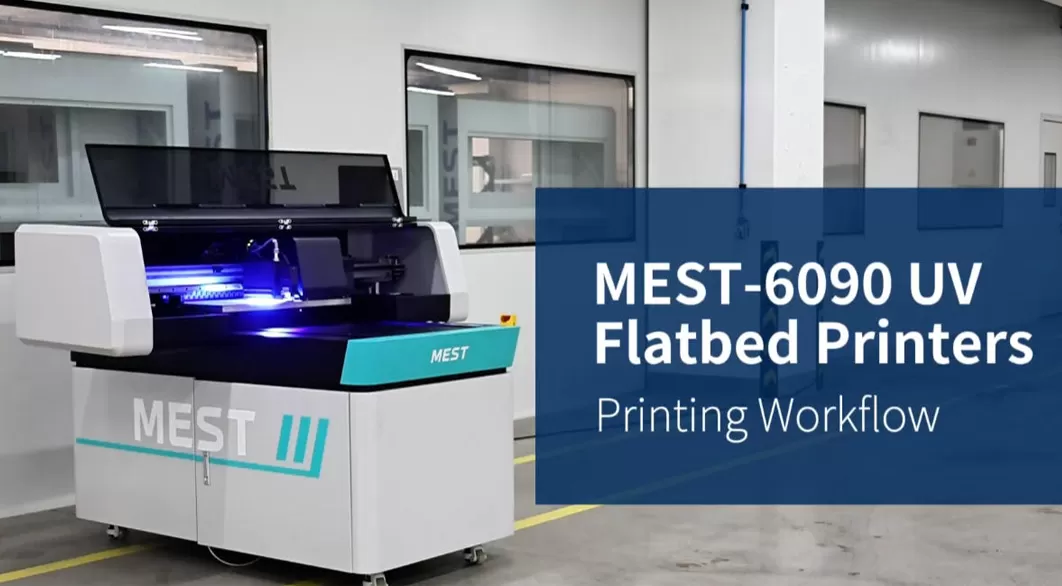

Place the substrates (such as acrylic, wood, glass, or various industrial panels) onto the vacuum platform. The system supports one-click positioning, and the platform automatically adjusts to the optimal printing height.
Powered by MEST’s proprietary 3-in-1 operating system, which seamlessly integrates Vision Scanning, Print Adjustment, and RIP Processing. This allows users to complete image recognition, parameter configuration, and path generation within a single interface, significantly streamlining the operational workflow.
Industrial-grade printheads ensure high-precision output, complemented by dual LED-UV curing systems. Controlled precisely by our integrated OS, the ink cures instantly upon printing, ensuring vibrant colors and superior adhesion.
The finished product is ready for immediate collection. Thanks to the intelligent processing of the 3-in-1 system, the output features exceptional color accuracy and fine detail, requiring no complex post-processing before final delivery.
| Visual UV Printer MEST-6090 Specifications | |
Model | Visual UV Printer MEST-6090 |
Dimensions(L×W×H) | 700mm × 1800mm × 1800mm |
Weight of Equipment | 350kg |
Camera Scan Range | Line scan: 1200 mm × Ulimited length |
Camera Lifting | Line scan: 0 - 200mm |
Recognition System | Carriage-Mounted Line Scan Vision System |
Print Head | Epson i1600-U1, i3200-U1, i3200-HD |
Effective Printing Size | 600×900mm |
Accepted Printed Product Height | 0-200mm |
Print Colors | CMYK+LC, LM+LK, LLK+W+V+Coating |
Number of Print Heads | 1-4 (Customizable) |
Printing Speed | 3-5 ㎡/h |
Print Resolution | 1200DPI |
Lifting function | The nozzle carriage is electronically raised and lowered automatically |
Data Interface | 3.0 USB Transmission interface |
Operating System | Microsoft Windows 10 Professional Edition |
Ink System | Continuous ink supply/capacity 1500ml/secondary constant temperature and pressure ink supply / cyclic stirring of white ink |
Operating Environment | Temperature: 0° - 30° / Humidity: 40% - 70% |
Receiving files | TIFF/BMP/PDF/EPS/JPNG.etc |
Voltage | 110-220V, 50/60HZ |
For growing businesses, choosing between a small desktop unit and a mid-sized industrial printer like the MEST-6090V is a pivotal decision. While desktop printers (like A3/A4 models) have a lower entry cost, the MEST-6090V is engineered to transform your workshop into a high-efficiency production factory.
| Feature | Desktop UV Printers (Small) | MEST-6090 Visual Series |
| Print Size | 30x42cm or smaller (Limited) | 60x90cm (Industrial Productivity) |
| Print Height | Usually < 100mm | Up to 200mm (For Boxes, Helmets & Gifts) |
| Positioning | Manual placement (Time-consuming) | Auto Visual Scan & AI Recognition |
| Ink System | Basic ink bottles (Air bubbles risk) | Secondary Constant Temp & Pressure |
| Printheads | XP600 / DX7 (Entry-level/Short life) | Epson i3200-U1 (Industrial Precision) |
1. Intelligent Visual Recognition vs. Manual Labor
Traditional small printers require manual alignment and custom jigs for every batch, leading to high labor costs and human error. The MEST-6090V features an integrated Line Scan Vision System that automatically detects the product's position and orientation. Just place your items on the bed, and the machine handles the rest—perfect for batch-printing personalized gifts or phone cases.
2. 200mm High-Drop Printing Capacity
Most desktop printers are restricted to flat, thin objects. With a 200mm (8-inch) vertical clearance, the MEST-6090V allows you to expand your business into high-value markets, such as custom shoeboxes, industrial components, suitcases, and deep gift packaging that small machines simply cannot accommodate.
3. Industrial-Grade Reliability (Epson i3200-U1)
Don't be fooled by cheap printers using consumer-grade heads (like XP600). The MEST-6090V utilizes Epson i3200-U1 industrial heads, offering double the firing frequency and a significantly longer lifespan. Combined with our Secondary Constant Temperature and Pressure Ink System, it ensures consistent color output and zero clogging even during long, high-intensity shifts.
4. Scalable Profitability
The 60x90cm bed size allows you to print 4x more items per cycle compared to an A3 desktop printer. This means higher throughput, lower cost per unit, and the ability to accept larger commercial orders with confidence.
The MEST-6090 prints directly on virtually any flat surface, including acrylic, wood, glass, metal, ceramic, PVC, leather, and ABS plastic. Most materials require no pre-treatment or plate-making. As long as the surface is flat and fits within a 600×900mm area and 200mm height, the machine can handle it.
No. The MEST-6090 features a carriage-mounted line scan vision system that automatically scans the print bed at 800mm/s, detecting the exact position and angle of your item. Simply place the object and press print — no manual alignment or jigs required for most applications.
The MEST-6090 runs on Microsoft Windows system and connects via a USB 3.0 high-speed interface. Accepted file formats include TIFF, BMP, PDF, EPS, JPEG, and more — compatible with standard design software workflows.
Our machines come with a one-year warranty (excluding printheads). During the warranty period, we will provide replacement parts free of charge. We also offer remote technical support and on-demand video assistance to help resolve issues quickly.
Our engineers will provide a tailored quote and technical analysis for your production line within 24 hours.
Free Sample Printing & Testing
Factory Direct Pricing & Support
Global Fast Delivery
100% Data Privacy Protected

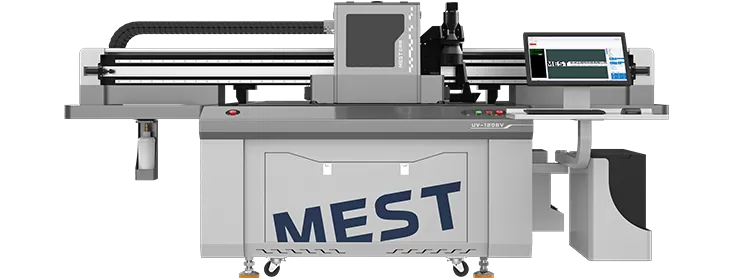

MEST-1208V UV Flatbed Printers
Nozzle Type: Epson i3200-U1/Ricoh G5i/Ricoh G6 (optional)
Print size: 1200*800mm
Print Color: CMYK+LC LM+LK LLK+W+V+coating (supports multiple color combinations)

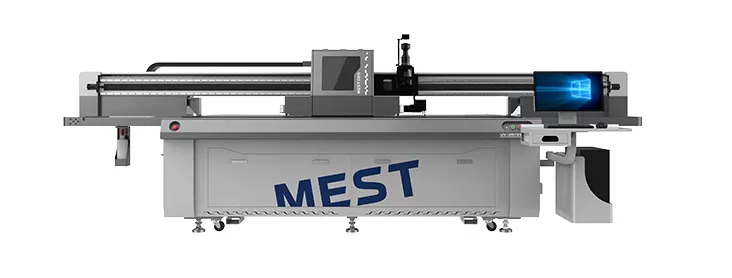

MEST-2513 UV Flatbed Printers
