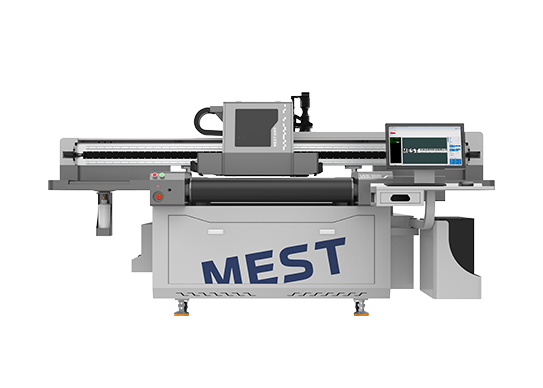

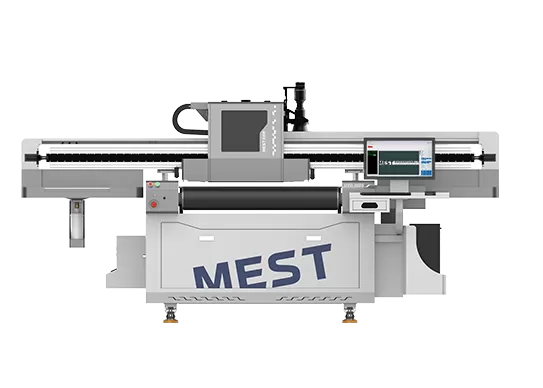

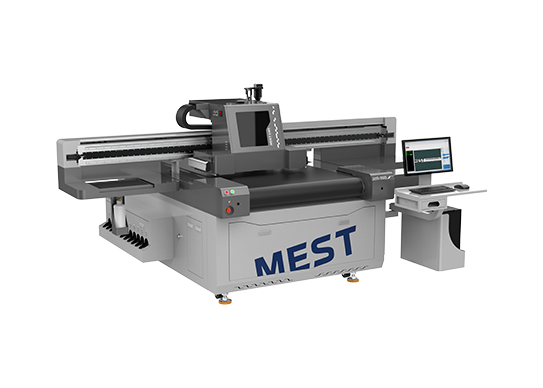

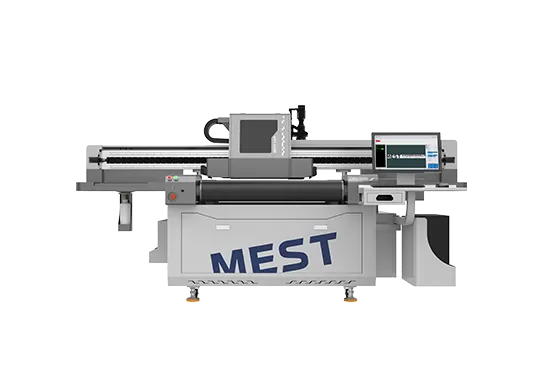

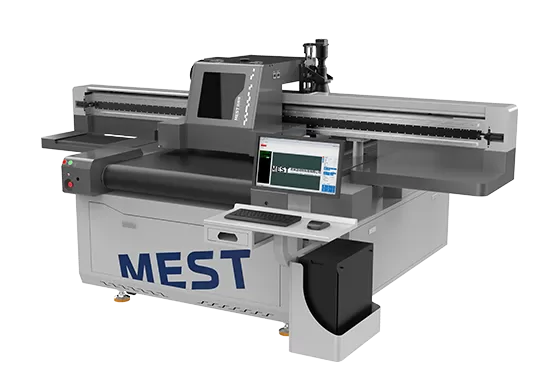

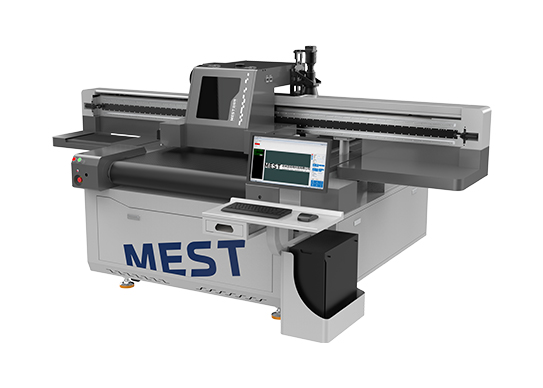

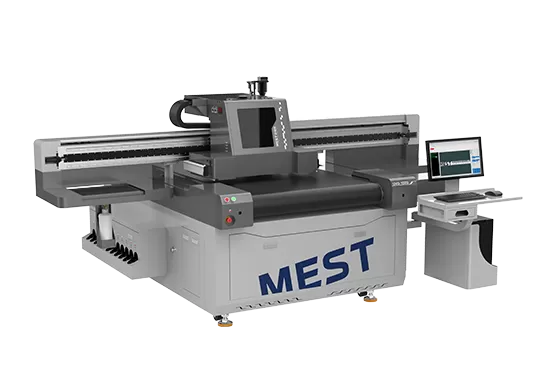

MEST-1220D Streamlined AI visual UV Conveyor Printer, equipped with Ricoh G6 printheads (1200/1800dpi precision), revolutionizes production via 1000mm/s linear scanning. No molds needed—after manual loading, AI vision recognizes contours for precise alignment, enabling non-stop feeding and print-while-scanning. With high color fastness and UV effects for most flat materials, it supports intelligent multi-pattern matching: simultaneous printing of different designs on same-height/thickness products, no pre-layout, ending material change downtime!
Printer Size | 2320mm*3310mm*1600mm |
| Equipment weight of Equipment | 1200kg |
| Camera Scan Range | 1200mm*No length limit |
| Camera Lifting | Linear array: 0-100mm |
Recognition System | Front-end line scanning vision solution |
Print Head | Ricoh G6 |
Effective Printing Size | 1200mm*No length limit |
Accepted Printed Product Height | 0-100mm (customizable) |
| Print Colors | CMYK+LC LM+LK LLK+W+V+coating (supports multiple color combinations) |
Number of Print Heads | 1-7 (customizable) |
| Printing speed | 4-6㎡/h (8pass); 6-8㎡/h (6pass); 10-12㎡/h(4pass) |
Print Resolution | 1200DPI/1800DPI |
| Lifting function | Electronic automatic lifting/manual intelligent sensing of the nozzle trolley Detection and height adjustment |
| Data Interface | High-speed 3.0 USB transmission interface |
| operating system | Microsoft Windows 10 Pro |
| Ink system | Continuous ink supply/capacity 1500ml/secondary constant temperature and constant pressure ink supply/White ink circulation stirring |
Operating Environment | Temperature: 20℃-30℃/Humidity: 40-70% |
Accepted File Format | TIFF/BMP/PDF/EPS/JPEG, etc. |
The MEST-1020D is engineered to bridge the gap between high-speed mass production and flexible, small-batch customization. By integrating advanced AI optics with industrial-grade hardware, it offers a distinct competitive edge for modern printing facilities.
1. High-Speed Linear Scanning with Ricoh G6 Heads
Equipped with Ricoh G6 industrial printheads, the MEST-1020D achieves a remarkable balance of speed and precision. With a fire frequency of up to 50kHz and a scanning speed of 1000mm/s, it delivers sharp 1200/1800dpi resolution. This allows for high-throughput production without sacrificing the delicate gradients and fine text required for premium souvenirs and industrial parts.

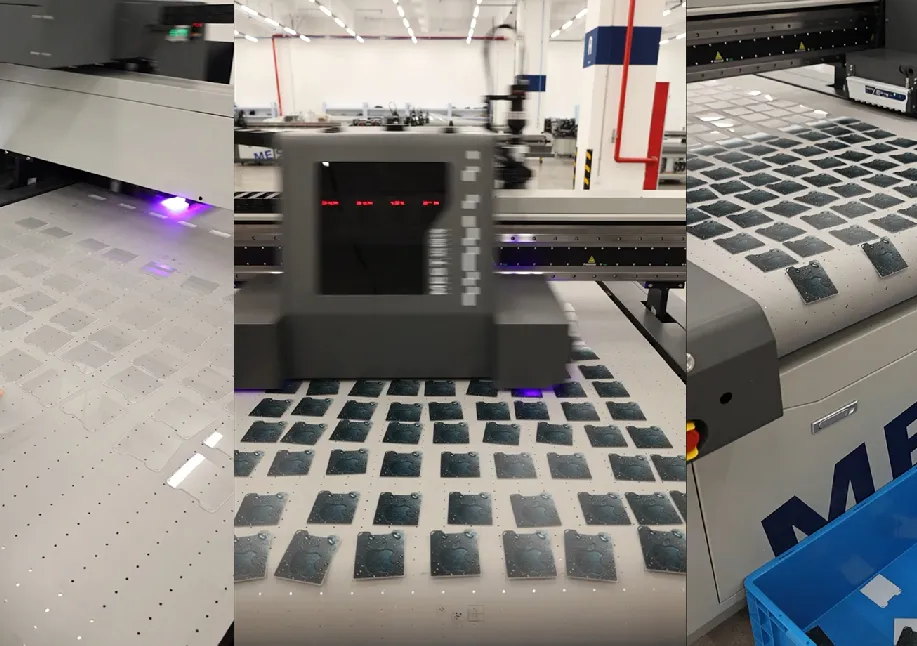

2. AI-Powered "Non-Stop" Conveyor Feeding
Unlike traditional flatbed printers that require a pause for loading and unloading, the MEST-1020D Hybrid System utilizes a continuous conveyor belt.
Automatic Contour Recognition: The front-end AI vision system scans materials as they move, identifying their position and shape in real-time.
Print-While-Scanning: This enables a seamless flow where the machine never stops moving, effectively doubling the daily output compared to standard static flatbeds.
3. Intelligent Multi-Pattern Matching (Mold-Free)
The most significant labor-saving feature is the Mold-Free technology. Traditional production requires physical jigs to hold products in place.
The MEST Advantage: You can place different products with varying designs on the belt simultaneously. The AI vision system matches each pattern to its corresponding product automatically.
Zero Downtime: Switch between different jobs (e.g., from medals to fridge magnets) instantly without re-calibrating or changing fixtures.
4. Industrial Grade Stability & Customization
Designed for 24/7 operation, the 1020D features a heavy-duty chassis (1300kg) to minimize vibration and ensure long-term mechanical accuracy.
Versatile Color Configurations: Supports CMYK, LC, LM, White, Varnish, and even specialized coatings, allowing for 3D embossed effects and high-gloss finishes on almost any flat substrate.
Scalable Nozzle Options: Customizable with 1 to 7 printheads to match your specific production volume and budget requirements.
The MEST-1220D eliminates the two biggest causes of downtime: manual alignment and job switching. By utilizing AI Intelligent Multi-Pattern Matching, the machine recognizes product contours in real-time. This allows you to print different designs on various products of the same height simultaneously. Because the AI vision system adjusts on the fly, there is no need for manual pre-layout, physical molds, or machine re-calibration between batches—enabling a true "non-stop" workflow.
As a high-performance UV hybrid printer, the MEST-1220D is compatible with virtually all flat and slightly curved substrates. Its industrial conveyor system is ideal for:
Rigid Materials: Acrylic, PVC boards, metal sheets, and glass.
Natural Substrates: Wood, stone, and ceramic tiles.
Personalized Items: Custom fridge magnets, phone cases, and promotional medals.
Its continuous feeding mechanism makes it specifically efficient for large-volume industrial applications where speed and versatility are paramount.
Absolutely. The MEST-1220D is equipped with Ricoh G6 industrial printheads, which are renowned for their 5pl drop size and high firing frequency. This allows for a native precision of 1200DPI to 1800DPI. Even at high-speed 4-8 pass modes, the machine ensures vivid color reproduction, smooth gradients, and sharp text, meeting the rigorous quality standards of both the souvenir and industrial labeling markets.
Yes. Supporting a customizable ink configuration (including White ink and Varnish), the MEST-1220D can produce sophisticated 3D embossed effects and high-gloss finishes. This adds a tactile, premium quality to products like cultural fridge magnets or luxury packaging, helping you achieve higher profit margins.
While the MEST-1220D is the gold standard for high-speed flat material production, your business might require specialized handling for cylindrical or tapered objects.
Compare with Our Best-Selling Rotary Solution
If your production line includes bottles, tumblers, or tubes, you should explore the MEST-RUV4030 UV Rotary Printer.
| Feature | MEST-1220D (Conveyor) | MEST-RUV4030 (Rotary) |
| Primary Shape | Flat & Slightly Curved | 360° Cylindrical & Tapered |
| Best For | Magnets, Medals, Signs, Boards | Bottles, Tumblers, Cans, Tubes |
| Feeding Method | Continuous Conveyor Belt | Rotary Jig System |
| Core Advantage | Mass volume flat production | Seamless 360° wrap-around prints |
Which one fits your workflow?
Choose MEST-1220D if you need the fastest throughput for large quantities of flat souvenirs or industrial panels.
Choose MEST-RUV4030 if you specialize in customized drinkware or cylindrical packaging.
