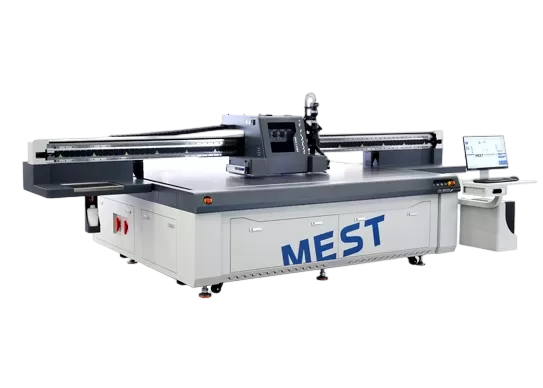

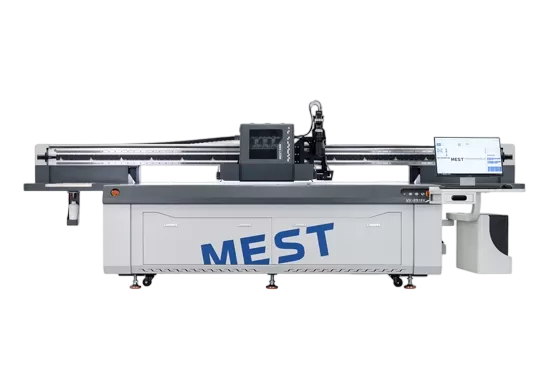

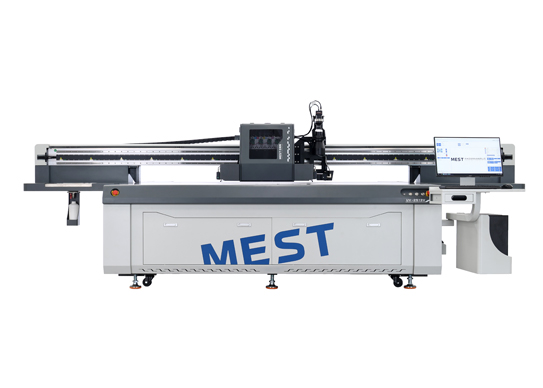

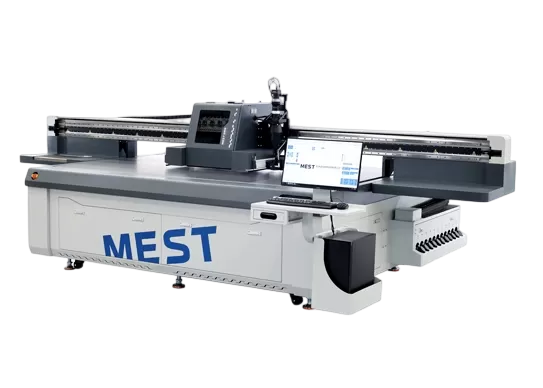

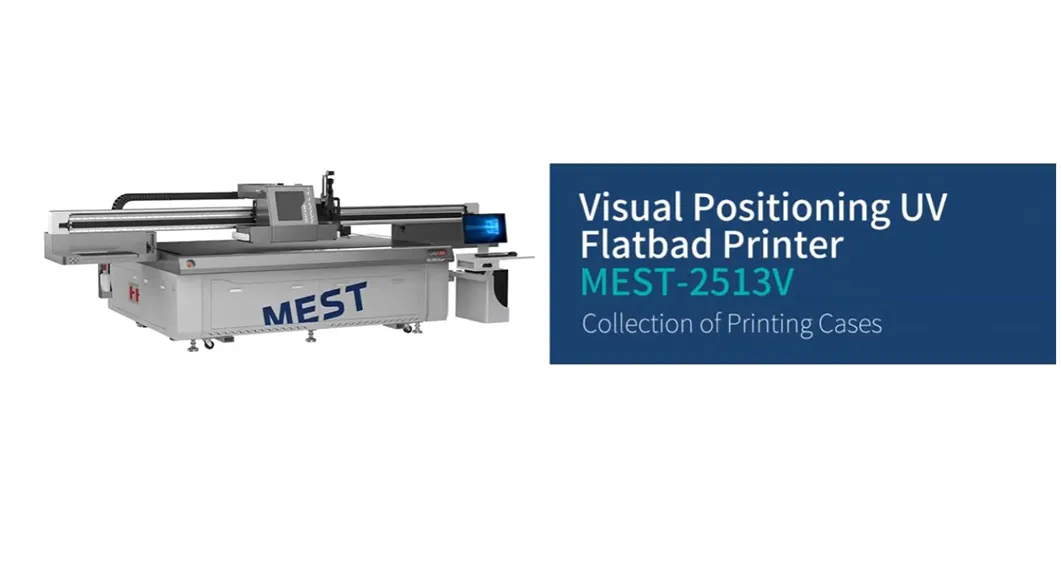

The MEST-2513 is a high-performance UV flatbed printer designed for industrial-grade printing on a wide range of rigid materials. With its large 2500×1300mm printing area, it delivers sharp, vibrant results on substrates like acrylic, wood, glass, and metal. Equipped with Ricoh G6 / Ricoh G5i / Epson i3200-U1 printheads and multi-layer printing capabilities, the MEST-2513 ensures precise output, high efficiency, and strong adhesion—making it an ideal solution for signage, interior décor, and customized product applications..
| Table length, width and height | 4410mm*2310mm*1520mm |
| Equipment weight | 1200KG |
| Camera scanning range | Linear array: 2500*1300mm |
| Camera lifting height | Linear array: 0-100mm |
| Identification system | Front-end line scanning vision solution |

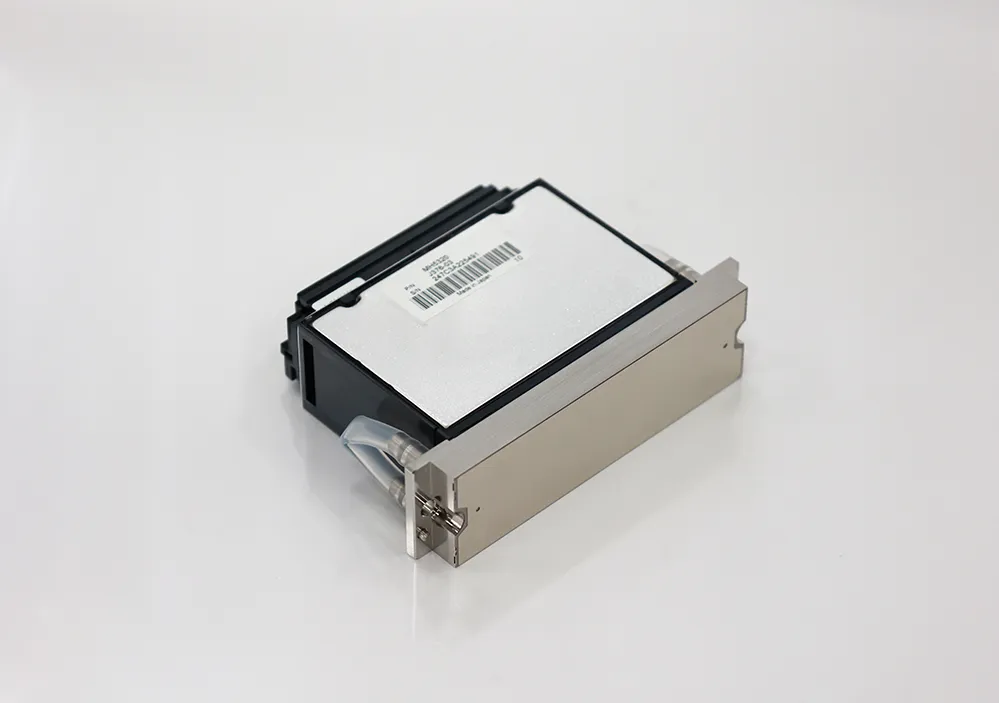

| Nozzle Type | Ricoh G6/Ricoh G5i/Epson i3200-U1 (optional) |
| Print size | 2500*1300mm |
| Print product height | 0-100mm (customizable) |
| Print Color | CMYK+LC LM+LK LLK+W+V+coating (supports multiple color combinations) |
| Number of nozzles | 1-7 (customizable) |

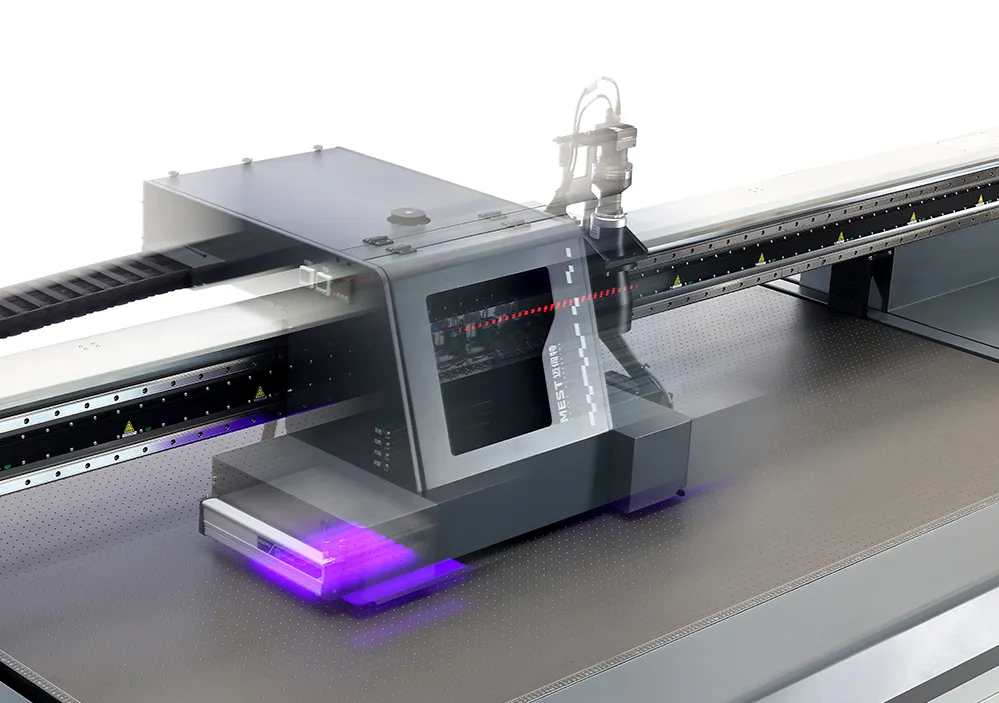

| Print speed | 6-35㎡/h |
| Printing accuracy | 1200DPI |
| Lifting function | Electronic automatic lifting/manual intelligent sensing of the nozzle trolley Detection and height adjustment |
| Data Interface | High-speed 3.0 USB transmission interface |

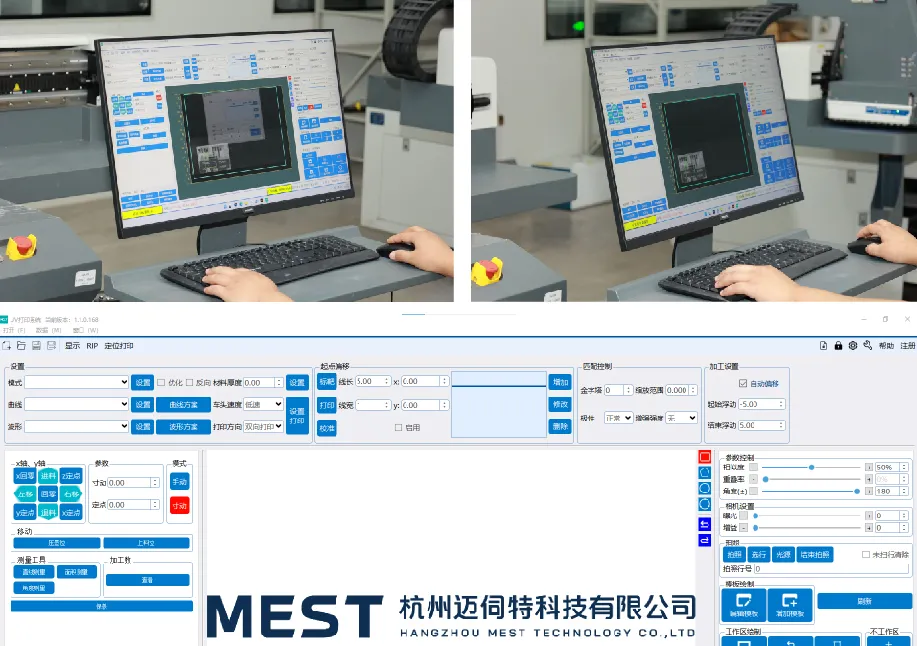

| operating system | Microsoft Windows 10 Pro |
| Ink system | Continuous ink supply/capacity 1500ml/secondary constant temperature and constant pressure ink supply/White ink circulation stirring |
| Work Environment | Temperature: 20℃-30℃/Humidity: 40-70% |
| Receiving files | IFF/BMP/PDF/EPS/JPEG, etc. |
Contact with Mest For High-quality UV Printers.

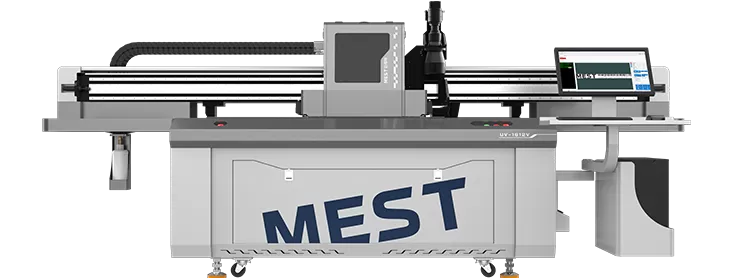

MEST-1612V UV Flatbed Printers
