According to the latest report from Textiles Intelligence, approximately 7 billion garments were produced worldwide using DTF technology in 2024. Today, more than half of all global T shirt printing already relies on this technology.
In the garment printing market, longstanding pain points include fabric limitations, poor color development on dark-colored fabrics, and high plate-making costs for small-batch orders. Is there a solution that requires no plate-making, works on any fabric, and still delivers natural, durable prints?
Responding to market demands, MEST Print draws on its in-house R&D expertise to officially launch its first-ever DTF white ink heat transfer printer, offering a systematic solution to the challenges above.

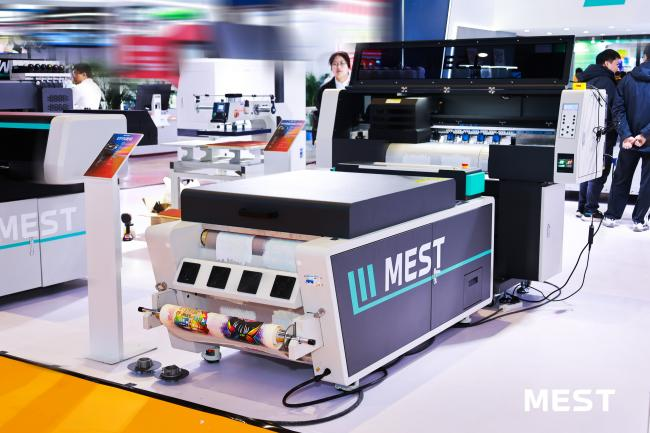

The MEST-DTF white ink heat transfer printer is purpose-built for pattern printing on a wide range of fabrics. In essence, the process works by first printing the image onto a special film — the PET release film — and then transferring it onto the fabric through heat and pressure.
The MEST-DTF is also equipped with a powder shaking unit, which enables rapid processing, drying, and curing of the white ink transfer film while preserving the true colors of the printed design. This seamlessly integrates printing, powder shaking, and curing into a single streamlined workflow.
Traditional screen printing relies on plate-making and cannot flexibly respond to personalized orders. Direct-to-Garment (DTG) printing involves cumbersome pretreatment for dark fabrics and has a high dependency on pure cotton substrates...
The MEST-DTF printer, on the other hand, truly stands out as the "all-rounder" of digital textile printing:
The MEST-DTF handles fabrics of any color – from dark to light – and virtually any material. It adapts seamlessly to cotton, linen, polyester, nylon, blends, leather, and more. With a white ink underbase and color overlay mode, patterns remain sharp and vivid even on dark-colored fabrics.
Prints produced by the MEST-DTF are long-lasting and resilient – they won't peel or fade even after repeated washing and rubbing. With no plate-making required, it enables print-on-demand production, making it the perfect match for small-batch, high-variety order fulfillment.

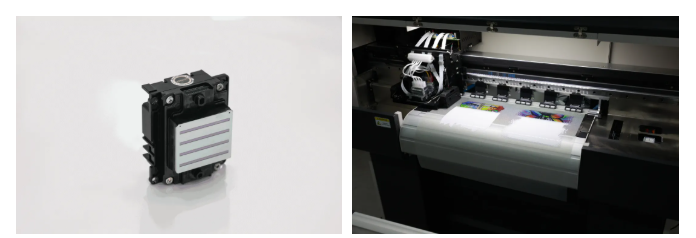

The MEST-DTF is equipped with Epson printheads, featuring 3,200 nozzles and a resolution of up to 2400 DPI. With variable drop technology, it delivers exceptional detail and color accuracy, with smooth gradation transitions. Additionally, 2–7 printheads are available, with selectable printing modes including standard, fluorescent, and high-speed printing.
Automatic cleaning and automatic capping prevent nozzle clogging, while the white ink circulation system ensures consistent ink flow and eliminates sedimentation. THK silent linear guides and a vacuum suction platform guarantee precise, distortion-free printing.

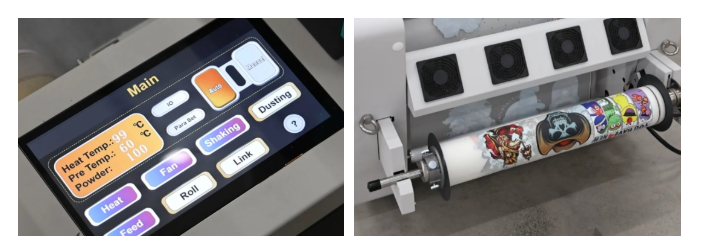

Equipped with a color touchscreen and an intuitive control panel, the printer offers a user-friendly interface that ensures efficient and hassle-free operation.
Performance determines the ceiling of what a printer can achieve, while the right model configuration defines cost-effectiveness and workflow efficiency. The MEST-DTF printer is available in 3 size variants and 4 configuration options to meet the needs of different customers.
MEST-DTF600 | |
Machine Dimensions (L×W×H, mm) | 1766 × 750 × 1513 |
Packing Dimensions (L×W×H, mm) | 1880 × 1060 × 740 |
Weight (kg) | 210 |
Table Height (mm) | 1062 |
Max. Printing Width (mm) | 600 |
Max. Roll Weight (kg) | 20 |
Printhead Type | Epson I1600-A1 / I3200-A1 |
Number of Printheads | 2–7 |
Printing Speed | 4pass：12㎡/h # 22㎡/h # 38㎡/h 6pass：8㎡/h # 16㎡/h # 28㎡/h 8pass：6㎡/h # 12㎡/h # 22㎡/h |
Image Processing Software | Maintop (Montai) ,FlexiPRINT, CADlink, PrintFactory |
From entry-level to mass production – we tailor the right printing solution for you:
5-color configuration with balanced speed – exceptional cost-effectiveness – the go-to choice for beginners.
9-color configuration for a wider color gamut and smooth, refined color transitions – ideal for high-quality orders.
12-color configuration offering greater ink combination flexibility and more options – adapts to diverse printing applications.
High-efficiency mass production – 6pass speed up to 29 m²/h – fully equipped for high-volume orders.
If you are interested in the MEST-DTF printer, we invite you to start with a simple test. Simply provide us with your design and sample materials, and we will offer free sample printing services. We support on-site visits, video consultations, and other formats – ensuring the print quality and results are fully verifiable.
For more information, feel free to send us a private message or call 400-100-1011. MEST Print is here to provide you with one-on-one personalized digital textile printing solutions.
Our engineers will provide a tailored quote and technical analysis for your production line within 24 hours.
