As customization becomes the new normal and delivery windows keep shrinking, the demands placed on UV printing equipment have never been higher. The industry has long struggled to strike the right balance between speed and precision — and that gap is where MEST steps in.

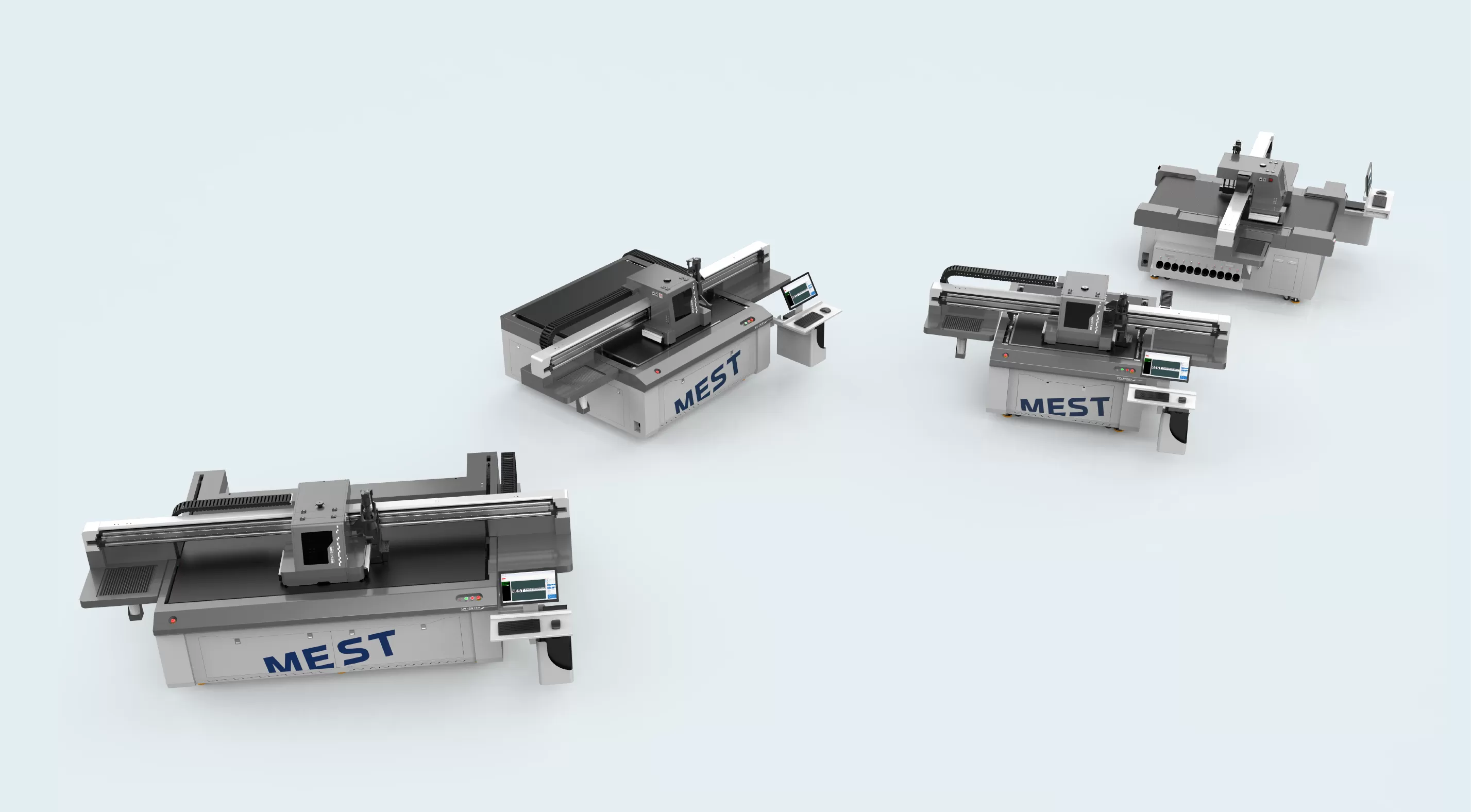

Grounded in real-world customer feedback and production experience, MEST has rolled out a comprehensive upgrade to its flagship Visual UV Printer series. The result: a smarter, more flexible machine engineered for greater efficiency, tighter precision, and broader material compatibility — purpose-built to break through production bottlenecks in packaging, home décor, building materials, and gift manufacturing.
Model | Before Upgrade | After Upgrade |
MEST-2513V | 4,410 × 2,310 × 1,520 mm | 4,510 × 2,310 × 1,520 mm |
MEST-1612V | 3,510 × 2,210 × 1,520 mm | 3,610 × 2,210 × 1,520 mm |
Select models have been subtly redesigned to achieve a more compact machine body with an optimized table layout. The industrial marble base — known for its vibration-dampening stability — is retained and now used even more efficiently, translating directly into improved print registration and color consistency across long runs.
Printhead | Nozzle / Channel Config | Best For |
Epson i3200-U1 | 3,200 nozzles, 8-channel | High-speed, high-volume runs; excellent versatility for large-scale orders. |
Epson i1600-U1 | 1,600 nozzles, 4-channel | Lightweight, flexible, cost-effective; ideal for small batches and personalized orders. |
MEST now supports a broader range of industrial printhead configurations. Alongside the existing Ricoh G6, Ricoh G5i, and Epson i3200-U1 options, the new Epson i1600-U1 has been added to the lineup — covering everything from high-precision imagery to cost-efficient small-batch production.
The maximum configurable printhead count has been extended from 7 to 9 heads, giving operators unprecedented flexibility to dial in the right balance of speed and precision for their workload. More heads means more simultaneous color channels, smoother gradients, and a wider gamut.
Beyond CMYK, additional heads can be dedicated to white ink, varnish, or embossing inks — unlocking complex finishing effects like raised textures, spot gloss, and specialty coatings that go far beyond standard UV printing.
MEST's proprietary visual positioning system — built on over 10 years of in-house R&D — solves one of the industry's most persistent challenges: accurately registering irregular and oddly shaped substrates. An onboard camera scans the product outline, automatically matches it to the appropriate template in the system, and initiates printing — no manual alignment, no custom jigs required.
Broad substrate compatibility remains a defining strength of the MEST Visual UV platform. The upgraded machines continue to handle rigid materials (ceramics, metal, acrylic), flexible surfaces (fabric, leather, silicone), and curved or irregular objects with height variations up to 20 mm — all with the same high-fidelity output.

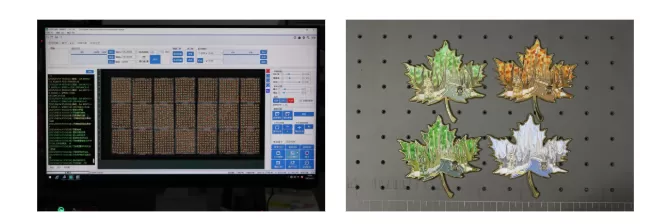

MEST's integrated three-in-one software (image sharpening, scanning, and printing in a single interface) delivers true 1:1 image reproduction at resolutions up to 1,200 DPI. Paired with UV-curable ink that dries instantly on contact, the system ensures razor-sharp edge control and eliminates the guesswork between preview and final print.
MEST maintains regional service offices across Zhejiang, Jiangsu, Guangdong, Fujian, Guangxi, and Shandong, with on-site teams ready to respond quickly to customer needs. The company also offers pre-sale sample testing, on-site post-sale training, and lifetime free software upgrades — ensuring customers are never left without support after installation.
This latest upgrade is more than a spec sheet refresh. It reflects MEST's ongoing commitment to listening to the market and translating that feedback into real, tangible improvements. Whether you're running high-volume packaging lines or producing short-run customized gifts, the upgraded MEST Visual UV Printer is engineered to keep pace with your production demands — and then some.
Refined structure. Expanded printheads. Up to 9-head configuration. MEST's Visual UV Printer evolves once again — delivering more efficiency, more flexibility, and more reliability across industries.
