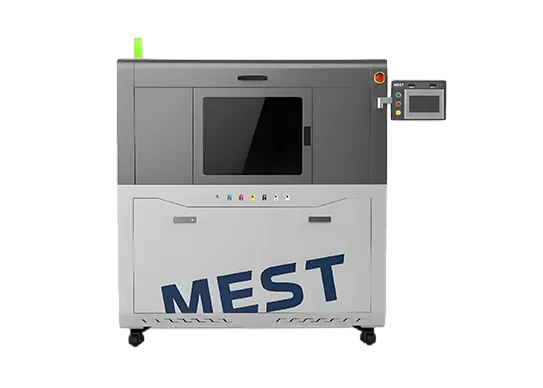

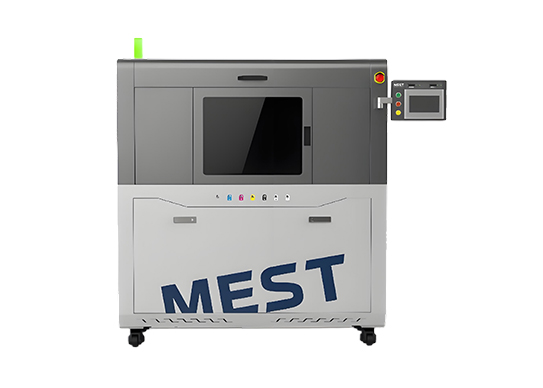

The MEST-RUV4030 is a compact rotary UV printer equipped with Epson i1600-U1 printheads, supporting CMYK+White+Varnish printing on straight, cone, and irregular cups. It delivers 360° high-resolution output (up to 900×1500dpi) with strong adhesion and vibrant color. Built with LED water-cooled UV curing, dual negative pressure ink supply, and intelligent features like anti-collision sensors, no-cup no-print, and auto head cleaning, it's ideal for personalized gifts and short-run production on glass, metal, plastic, and more.
| Printer | |
| Printer head | Epson i1600 U1 |
Printing configuration | White+CMYK+Varnish |
Outut precision | 900x900dpi/900x1200dpi/900x1500dpi |
Ink type | UV ink |
Ink bottle configuration | 1L bottle |
RIP Software | PhotoPrint |
PC requirement | I5/i7 CPU HD 512G |
Operating system | Windows 10 |
Print System | |
Printed Object | Taper/Cylinder |
Size | Length: 0-400mm(0”-15.7”) Top diameter: 40-180mm(1.57”-7”) Bottom diameter: 40-180mm(1.57”-7”) |
| Print Quality | High Speed: 900x900dp Standard: 900x1200dpi High Quality: 900x1500dpi |
Print Productivity (With Bottle Diameter 70mm(2.76”, Image size 100x160mm) | Normal Mode: 45s(W+CMYK); 60s (W+CMYK+Vanish) High Quality Mode: 45s(W+CMYK); 60s(W+CMYK+Vanish) |
| Media Type | White/Black/Colored tapers/Cylinders Metal, paper, plastic, wood, glass. Etc |
| Printing control system | Shenzhen HanSoft |
| Supply ink system | Automatic ink supply system |
| Air System | Double negative pressure system |
| Motion System | X axis: servo motor Y axis: Linear motor+1um magnetic grid |
| Formats | Tiff, AI, PDF, BMP, JPG, PNG |
| Characteristic | |
| without cup print forbid | If there is no cup in machine, print is forbid to protect printhead blocking by UV light |
| anti-crash of printhead | There is a sensor below printhead, which is used to protect printhead avoid being scratched by unstable rotating cups |
| Auto clean printhead | Auto clean printhead and auto wipe printhead |
| Save Cup parameters | Cups information can save in software. |
| Data transmission | |
| Date interface | Ethernet |
| Machine Size | |
| Machine Size | 1400(L)*940(W)*1760(H) mm |
| Packing box | 1500(L)*700(W)*1800(H) mm |
| Machine weight | |
| Net weight | ≈350KG |
| Gross weight | ≈420KG |
| Operating environment | |
| Temperature | 20-30°C |
| Humidity | 35-65%RH |
| Power requirement | |
| Power supply specification | AC220V±10% 50/60HZ |
| Power configuration | Below2000w |
| UV system | LED-UV Water cooling |
Contact with Mest For High-quality UV Printers.
MEST-RUV4030P UV Rotary Printers
Printer head: RICOH GEN4
Printing configuration: White+CMYK+Varnish
Outut precision: 900x900dpi/900x1200dpi/900x1500dpi
