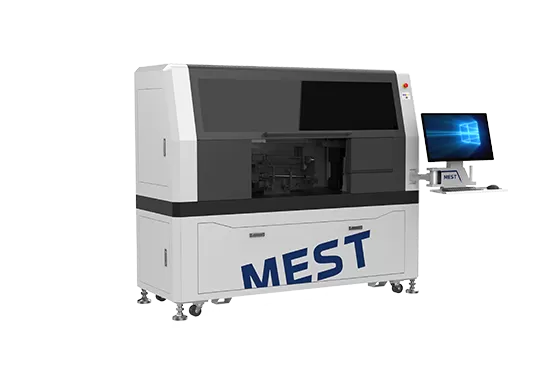

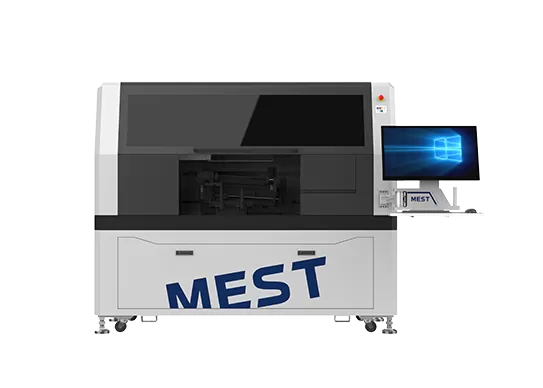

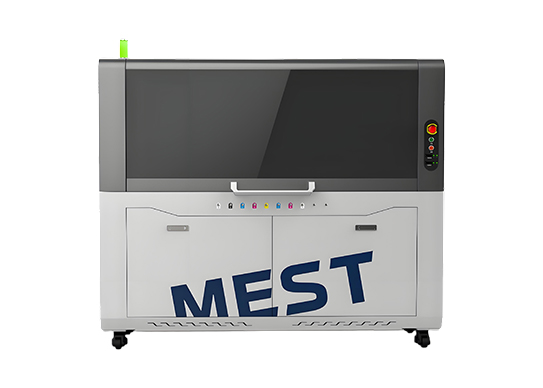

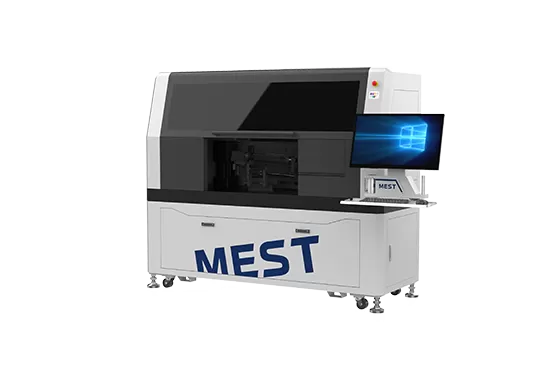

The MEST-RUV4030P is a professional rotary UV printer equipped with Ricoh GEN4 printheads, designed for irregular cylindrical items like high-drop and cut-surface cups. This 360 UV rotary printer delivers consistent and reliable performance for complex curved surface applications. It offers 360° high-resolution printing (up to 900×1500dpi) with CMYK+White+Varnish using UV ink. Featuring intelligent positioning, anti-collision protection, automatic ink supply, water-cooled LED UV curing, and auto head cleaning, it ensures vivid output and precise alignment. Compatible with glass, metal, plastic, and wood, it's ideal for personalized gifts, promotional items, and creative branding.
| Printer | |
| Dimensions(L×W×H) | 2000×745×1685 |
| Weight of Equipment | 950 |
| Print Head | Ricoh G6 |
| Effective Printing Range | Diameter 40-160,Length 80-300 |
| Print Color | CMYK+LC+LM+White+Varnish+Coating |
| Number of Print Heads | 1-6 (Customizable) |
| Printing Speed | 30 seconds per piece;360°all-around rotary printing |
| Printing Resolution | 1200 |
| Adjustment Function | -5°to 8°(Tilt control button allows flexible adjustment based on product shape) |
| Data Interface | 3.0 USB transmission interface |
| Operating System | Microsoft Windows 10 Professional edition |
| Ink System | Continuous ink supply/capacity 1500ml/secondary constant temperatue and pressue ink supply/cyclic stirring of white ink |
| Operating Environment | Temperature 0°-30℃/Humidity:40%-70% |
| Power Requirements | 110-220V,50/60HZ |
| Printer head | RICOH GEN4 |
| Printing configuration | White+CMYK+Varnish |
| Outut precision | 900x900dpi/900x1200dpi/900x1500dpi |
| Ink type | UV ink |
| Ink bottle configuration | 1L bottle |
| RIP Software | PhotoPrint |
| PC requirement | i7 CPU HD 512G |
| Print System | |
| Printed Object | Taper/Cylinder |
| Size | Length: 0-400mm(0”-15.7”) Top diameter: 40-180mm(1.57”-7”) Bottom diameter: 40-180mm(1.57”-7”) |
| Print Quality | High Speed: 900x900dpi Standard: 900x1200dpi High Quality: 900x1500dp |
Print Productivity (With Bottle Diameter 70mm(2.76”, Image size 100x160mm) | Normal Mode: 45s(W+CMYK); 60s (W+CMYK+Vanish) High Quality Mode: 45s(W+CMYK); 60s(W+CMYK+Vanish) |
| Media Type | White/Black/Colored tapers/Cylinders Metal, paper, plastic, wood, glass. Etc |
| printing control system | Shenzhen HanSoft |
| Supply ink system | Automatic ink supply system |
Air System | Double negative pressure system |
| Motion System | X axis: servo motor Y axis: Linear motor+1um magnetic grid |
| Formats | Tiff, AI, PDF, BMP, JPG, PNG |
| Characteristic | |
| without cup print forbid | If there is no cup in machine, print is forbid to protect printhead blocking by UV light |
| anti-crash of printhead | There is a sensor below printhead, which is used to protect printhead avoid being scratched by unstable rotating cups |
| Auto clean printhead | Auto clean printhead and auto wipe printhead |
| Save Cup parameters | Cups information can save in software. |
| Data transmission | |
| Date interface | USB3.0 |
| Machine Size | |
| Machine Size | 1951(L)*625(W)*1639(H) mm |
| Packing box | 2500(L)*700(W)*1900(H) mm |
| Machine weight | |
| Net weight | ≈580KG |
| Gross weigh | ≈650KG |
| Operating environment | |
| Temperature | 20-30°C |
| Humidity | 35-65%RH |
| Power requirement | |
| Power supply specification | AC220V±10% 50/60HZ |
| Power configuration | Below2000w |
| UV system | LED-UV Water cooling |
The heart of the MEST-RUV4030P lies in its genuine Ricoh GEN4 industrial-grade printheads. Unlike disposable or consumer-level heads, the Ricoh GEN4 is engineered for 24/7 high-intensity production environments.
Stainless Steel Construction: The internal structure is made of high-quality stainless steel, providing excellent resistance to corrosion from various UV inks and preventing internal clogging.
Long Service Life: Designed for heavy-duty cycles, Ricoh GEN4 heads typically offer a significantly longer lifespan (2-3 years under proper maintenance) compared to Epson-based alternatives, reducing your long-term OpEx.
Stable Thermal Control: Features an internal heater and temperature sensor, ensuring consistent ink viscosity and stable jetting even in changing workshop environments.
Variable Dot Technology (Grayscale): The Ricoh GEN4 supports multi-drop grayscale printing. This allows it to produce dots of different sizes (7pl to 21pl), resulting in smoother gradients, sharper text, and photo-realistic skin tones without "graininess."
High-Frequency Jetting: With a high firing frequency, this head maintains extreme accuracy even at high speeds, ensuring that every drop hits the target on 360° rotating surfaces.
Perfect for "High-Drop" Cylinders: Combined with our motion control system, the GEN4 maintains a concentrated spray, allowing it to bridge the gap on tapered or irregular cups without losing image clarity.
| Feature | Ricoh GEN4 (MEST-RUV4030P) | Standard Desktop/Epson Heads |
| Material | All-Steel Structure (Anti-corrosive) | Plastic/Membrane (Easily damaged) |
| Durability | Industrial 24/7 Production | Light-duty / Intermittent use |
| Service Life | 2–3 Years (with proper maintenance) | 6–12 Months (frequent replacement) |
| Droplet Control | Multi-drop Grayscale (7pl-21pl) | Fixed or limited droplet size |
| Ink Compatibility | High-viscosity industrial UV inks | Limited to thin, low-pigment inks |
| Maintenance | Auto-cleaning & Flash firing | Manual cleaning & high clog risk |
| ROI (Return) | Lower long-term OpEx / Higher uptime | Low entry cost / High hidden costs |
Yes. The MEST-RUV4030P is specifically engineered for irregular cylindrical objects, including tapered bottles, conical cups, and high-drop surfaces. It supports a diameter range of 40-180mm and lengths up to 400mm, ensuring 360° seamless printing on various shapes.
This machine is highly versatile and works with a wide range of substrates. It provides excellent adhesion and vivid colors on glass, metal (stainless steel, aluminum), plastics (PP, PE, ABS, PVC), wood, and ceramics. It is ideal for personalized drinkware, sports bottles, and promotional gifts.
Absolutely. Equipped with Ricoh GEN4 printheads, the printer supports a CMYK + White + Varnish configuration. This allows you to print vibrant graphics on dark or transparent materials and add a gloss or embossed "3D texture" finish with the varnish layer.
To protect your investment, the MEST-RUV4030P features an intelligent anti-crash sensor. If the machine detects an unstable rotating cup or an uneven surface that could scratch the printhead, it automatically pauses the printing process to prevent any hardware damage.
Yes. Unlike entry-level rotary printers, the MEST-RUV4030P uses a double negative pressure system and an automatic ink supply. These features, combined with the industrial Ricoh heads, ensure stable, continuous 24/7 operation with minimal downtime for maintenance.
Our engineers will provide a tailored quote and technical analysis for your production line within 24 hours.

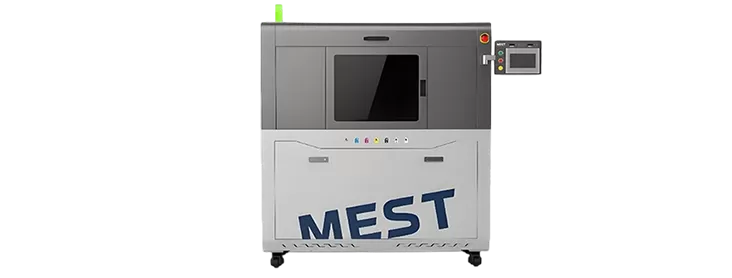

MEST-RUV4030 UV Rotary Printers
