MEST advanced roll-to-roll textile UV DTF printer ushers in a new era of textile printing innovation! Break free from the limitations of traditional UV processes and embrace dual-scenario versatility—enabling effortless printing on both rigid materials and textiles.
Brand | Yaliexing | |

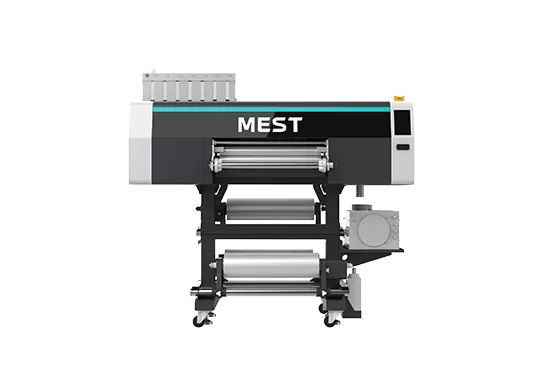

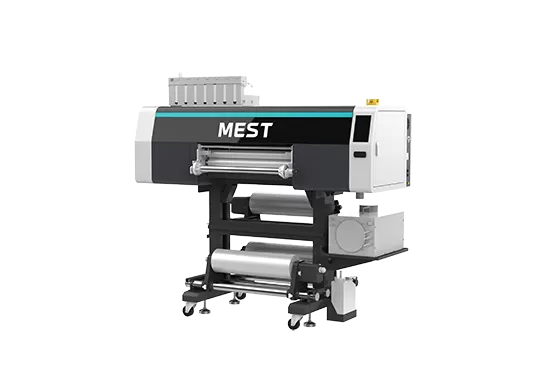

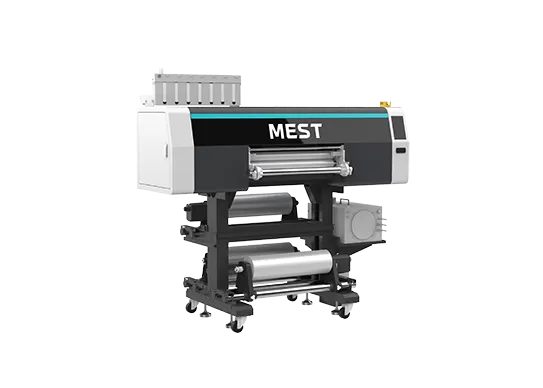

Model | UV-60R Textile | |
Print Nozzle | Epson printhead, 400 nozzles/row × 8 rows × 4 channels, high quality up to 1800dpi | |
Print Resolution/Speed | 4-pass: 12 ㎡/h; 6-pass: 8 ㎡/h; 8-pass: 5 ㎡/h | |
Ink | Type | UV-LED curable ink |
Capacity | 5 colors: 1.5L × 5 per color | |
Media | Max Width | 620 mm |
Thickness | Adjustable from 1.5 mm to 6 mm | |
Max Roll Weight | 20 kg | |
Type | UV DTF film | |
High Print Quality | Triple intelligent feathering printing function; Variable frequency drive technology | |
Media Heater | Pre/post heater (independently controllable) | |
Print Interface | USB 2.0 | |
Image Processing Software | FlexiPRINT, DigitalFactory CADlink | |
Voltage | AC110V ±10%, AC220V ±10%, 50/60±Hz | |
Operating Environment | Temperature: 20°C-35°C; Humidity: 35%RH-65%RH | |
Power | Wire drawing: 200W, Front/middle/rear heating: 450W | |
Printer Dimensions (L×W×H) | 1785×790×1613 mm | |
Packaging Dimensions (L×W×H) | 2100×970×730 mm | |
Workbench Height | 1062 mm | |
Net Weight | 200 kg | |
Gross Weight | 220 kg | |
Contact with Mest For High-quality UV Printers.

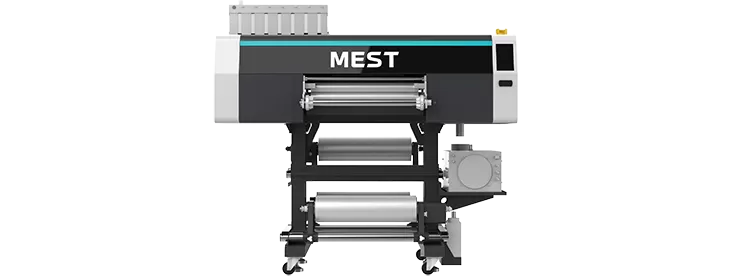

MEST-UV DTF300 Printers
Print Width: 30 cm (12")
Printhead: Epson i3200-U1HD
Speed: 7.2 m²/hour
Colors: CMYK + White + Varnish
