As emotional consumption and the aesthetic economy gain momentum, more and more consumers are willing to pay for their moods. Meanwhile, cups, bottles, and round cans are gradually shedding their single identity as daily necessities, becoming trendy carriers that embody brand identity and personal emotions.
Plain cups, once customized with exclusive graphic designs, can double in value. However, production capacity and surface finish quality remain persistent pain points for the industry.
MEST Print has designed a printing solution specifically for irregular cylindrical products such as cups and bottles – the Cylindrical UV Printer MEST-RUV4030P, which breaks through the limitations of conventional processes and opens up a new path for curved-surface color printing.
Traditional curved-surface printing on cups, bottles, and round cans mainly relies on two methods: screen printing and labeling. However, both approaches face the inherent trade-off between efficiency and quality.
Screen printing requires plate-making, which limits design variety to a single pattern per plate. Any new design demands a new plate, resulting in extended production lead times and prohibitive costs for small-batch orders.
For frequently used products like cups and bottles that require regular washing, labeling offers flexibility, but the labels are prone to edge curling and suffer from poor adhesion.
With octagonal cups and irregular bottle shapes, conventional processes struggle to evenly cover intricate edges and corners, often resulting in pattern distortion and loss of fine details.
The MEST Cylindrical UV Printer targets industry pain points head-on with its 360° seamless rotary printing technology, delivering a one-stop solution for personalized customization of irregular cylindrical products such as cups and bottles.

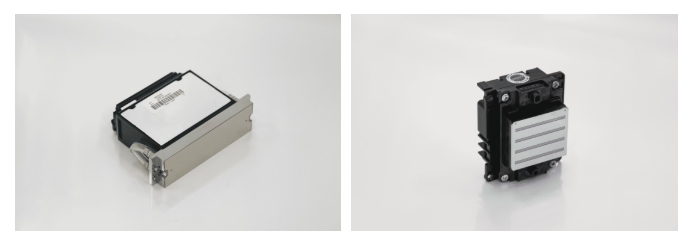

Equipped with 360° all-round rotary printing technology, the printer offers a choice between two high-precision printheads – Ricoh and Epson. Color patterns are achieved in a single pass, with a printing speed of up to 45 seconds per piece and a print resolution of up to 1200 DPI.
The number of printheads is customizable from 1 to 6, with synchronized output of white, CMYK, and gloss varnish – plus a metallic gold varnish option. This enables effects including gradients, gold foil stamping, and 3D embossing, delivering exceptional color reproduction and surface finish that stays true to the original design.
Equipped with a tilt control button, the printer allows flexible adjustment of the printing angle from -5° to +8° to accommodate various product shapes. It supports high-gap printing of up to 0–15 mm, and combined with seamless splicing technology, it significantly expands the range of applicable products.
The printer supports printing on a wide range of materials, including stainless steel, plastic, ceramics, and matte or glossy coated surfaces. With zone-based temperature control, it ensures strong adhesion of the printed patterns.
MEST Print has built a stable printing foundation with exceptionally high-grade hardware and software configurations. Every parameter has been rigorously refined through iterative testing and optimization, striking an optimal balance between user-friendly operation and the demands of continuous factory production.
The performance specifications of the two MEST Cylindrical UV Printer models are as follows:
| MEST-RUV4030P | MEST-RUV4030 | |
Overall Dimensions (mm) | 2000 (L) × 745 (W) × 1695 (H) | 1400 (L) × 940 (W) × 1760 (H) |
Weight (kg) | 950 | 380 |
Printhead Type | Ricoh GEN6 MH5320 (2-Color) / MH5340 (4-Color) | Epson 1160-U1 |
Printing Range (mm) | Diameter: 40–160, Length: 80–300 | Diameter: 40–180, Length: 0–400 |
Printing Colors | CMYK + LC + LM + White + Gloss Varnish + Gold Varnish | CMYK + LC + LM + LK + LLK + White + Varnish |
Number of Printheads | 1–6 (customizable) | 1–6 (customizable) |
Printing Speed | 60s/piece with 360° all-round rotary printing | 45s/piece (White + Color), 60s/piece (White + Color + Varnish) |
Print Resolution (DPI) | 1200 | 1200 |
Tilt Adjustment Range | -5° to +8° | ±15° |
Data Interface | Gigabit Ethernet | Gigabit Ethernet |
Operating System | Microsoft Windows 10 Pro | Microsoft Windows 10 Pro |
Ink Supply System | Continuous ink supply, 100ml capacity, secondary boost pump pressure feeding; White ink: 1500ml circulation system | Continuous ink supply, 100ml capacity, secondary constant temperature & pressure feeding; White ink: 1500ml circulation system |
Working Environment | Temperature: 20°C–30°C / Humidity: 35%–65% | Temperature: 20°C–30°C / Humidity: 35%–65% |
File Formats Supported | TIF, JPG, PDF, EPS, PNG, etc. | TIF, JPG, PDF, EPS, PNG, etc. |
Power Requirements | AC220V ±10%, 50/60Hz | AC220V ±10%, 50/60Hz |
The MEST Cylindrical UV Printer integrates high precision, high efficiency, and high compatibility into one solution, bringing cup, bottle, and curved-surface printing production back to what matters most – efficiency at its core.
If you are engaged in customized production of cylindrical products such as cups and bottles, wine bottles, cosmetics, or promotional gifts – whether for daily design work or batch orders – this printer is the ideal choice for you!
With stable and reliable automated printing solutions, MEST Print is here to help you stay ahead in the wave of personalized consumption!
